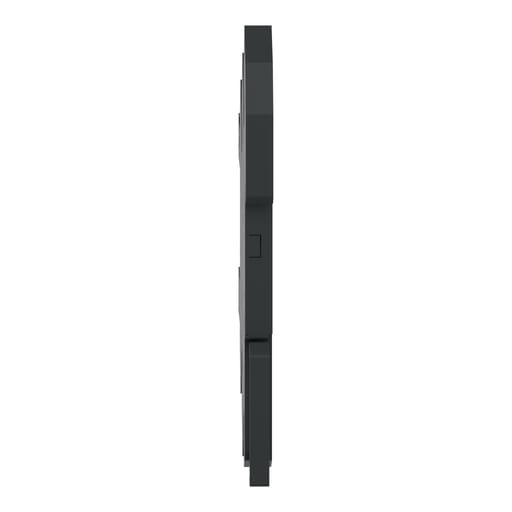

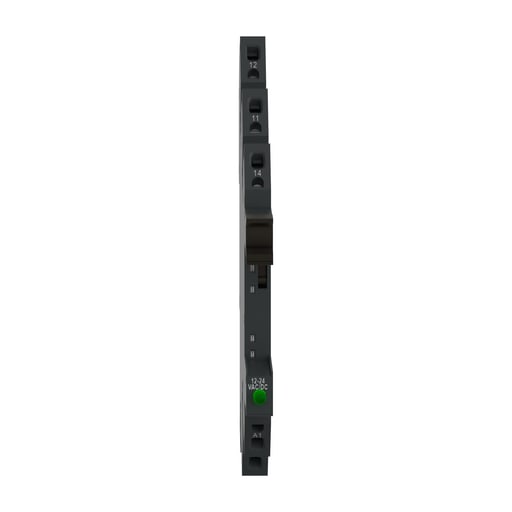

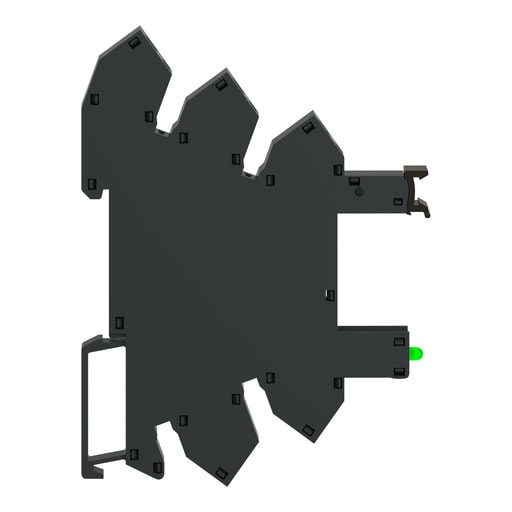

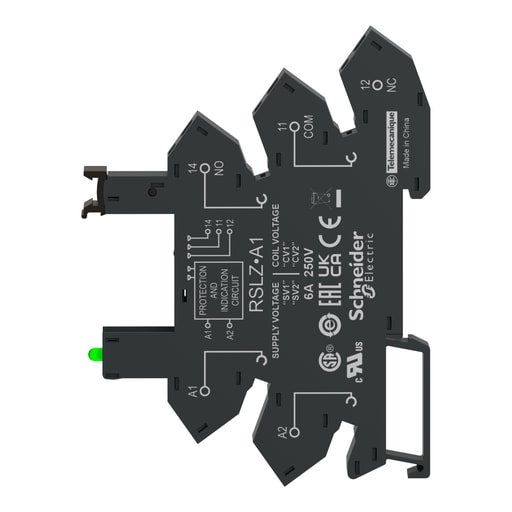

Square-D / Schneider - SQD RSLZRA3 socket equipped with LE

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 606480078098

  • Applications - PLUG-IN RELAY RSL 1 C/O 60 V DC

  • Catalog Number - RSLZRA3

  • Country of Origin - China

  • ERP_productname - SQD RSLZRA3 HARMONY, SOCKET EQUIPPED WITH LED AND PROTECTION CIRCUIT, FOR RSL1 RELAYS, SPRING TERMINALS, 110 V AC/DC

Packaging

  • 10 ea

EAN

03606480078095

Part #

260539

Catalog #

RSLZRA3

Commercial reference

RSLZRA3

12-Digit UPC:

606480078098

Applications:

PLUG-IN RELAY RSL 1 C/O 60 V DC

Catalog Number:

RSLZRA3

Country of Origin:

China

ERP_productname:

SQD RSLZRA3 HARMONY, SOCKET EQUIPPED WITH LED AND PROTECTION CIRCUIT, FOR RSL1 RELAYS, SPRING TERMINALS, 110 V AC/DC

Family Brand Name:

Schneider Electric

Heights:

78.6 mm

Size:

101 MM,6.2 MM,78.6 MM

Sub Brand:

RSLZ

Tc Connection:

SPRING TERMINALS, 1 X 0.2...1 X 1.5 MMA. AWG 24...AWG 16) FLEXIBLE WITH CABLE END-SPRING TERMINALS, 1 X 0.2...1 X 1.5 MMA. AWG 24...AWG 16) SOLID WITHOUT CABLE END

Type:

Socket;Flat

Voltage:

300 Volt

Widths:

6.2 mm

SoneparProductId:

SKU_US_193627970

"This Harmony RSL plug-in socket with LED indicator has a rated voltage of 110V AC/DC." "It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0 0 Prop 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: RSLZ5; RSLZ2; RSLZ3 - Cross Sell Products: RSL1PRFU; RSL1AB4ND
