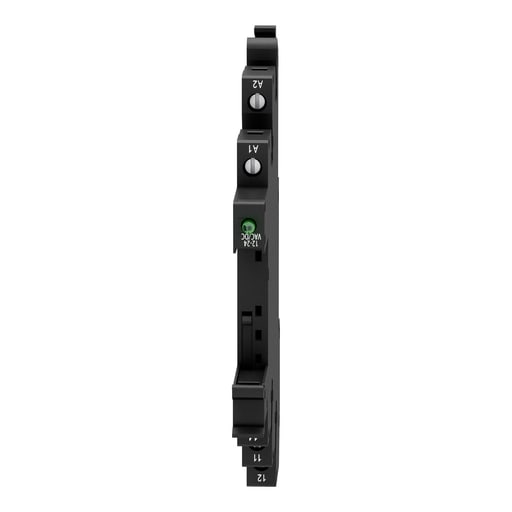

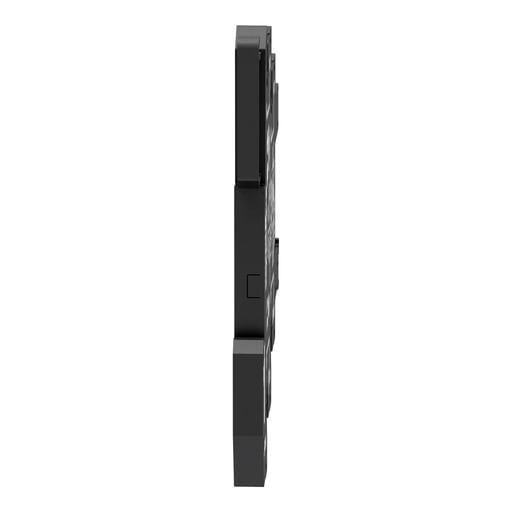

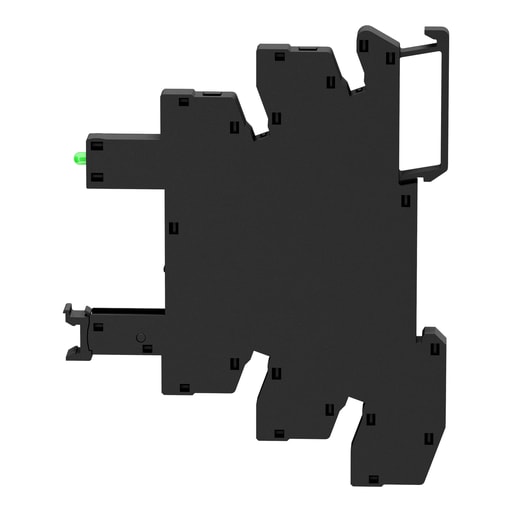

Square-D / Schneider - SQD RSLZVA1 socket equipped with LE

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 606480078029

  • Amperage - 6 Amp

  • Applications - PLUG-IN RELAY RSL 1 C/O 12 V DC-PLUG-IN RELAY RSL 1 C/O 24 V DC

  • Catalog Number - RSLZVA1

  • Country of Origin - USA

Packaging

  • 1 ea

EAN

03606480078026

Part #

121760

Catalog #

RSLZVA1

Commercial reference

RSLZVA1

12-Digit UPC:

606480078029

Amperage:

6 Amp

Applications:

PLUG-IN RELAY RSL 1 C/O 12 V DC-PLUG-IN RELAY RSL 1 C/O 24 V DC

Catalog Number:

RSLZVA1

Country of Origin:

USA

ERP_productname:

SQD RSLZVA1 SCREW SOCKET, 12/24 AC/DC (RELAY)

Enclosure:

IP20

Family Brand Name:

Schneider Electric

Heights:

78.6 mm

Size:

6.2 MM,78.6 MM,95 MM

Sub Brand:

RSLZ

Tc Connection:

CONNECTOR, 1 X 0.2...1 X 2.5 MMA. AWG 24...AWG 14) FLEXIBLE WITH CABLE END-CONNECTOR, 1 X 0.2...1 X 2.5 MMA. AWG 24...AWG 14) SOLID WITHOUT CABLE END

Type:

Socket;Flat

Voltage:

300 Volt

Widths:

6.2 mm

SoneparProductId:

SKU_US_29241728

"This Harmony RSLZ plug-in relay socket has a coil control voltage of 12 - 24V AC/DC." "It has large choice of number of contacts for high rated current use." "It also offers LED indicator and protection circuit." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "One of the slimiest socket on the market, with 6.2mm width, it can be installed nearly anywhere." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0 Prop 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: RSLZ2 - Cross Sell Products: RSLZRA1; RSLZVA2; RSLZVA3
