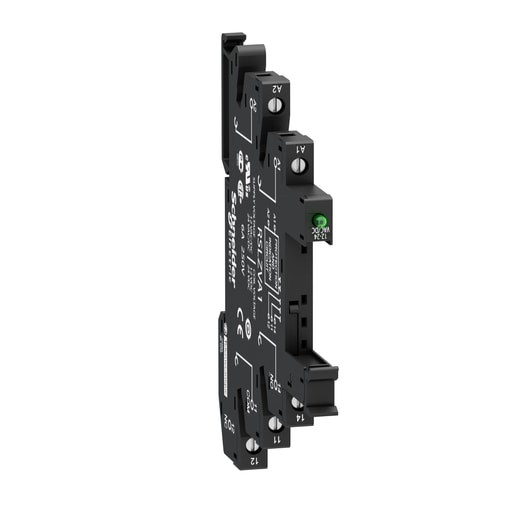

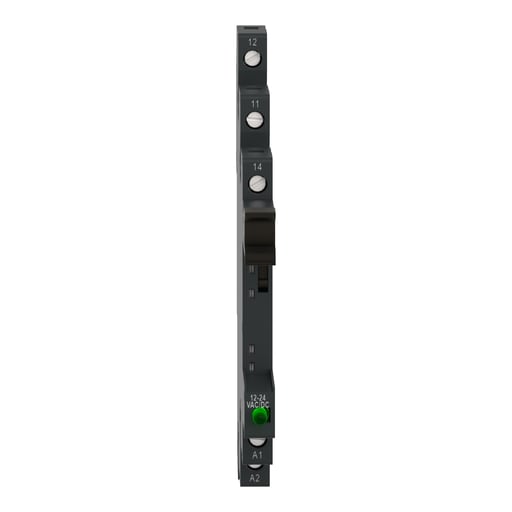

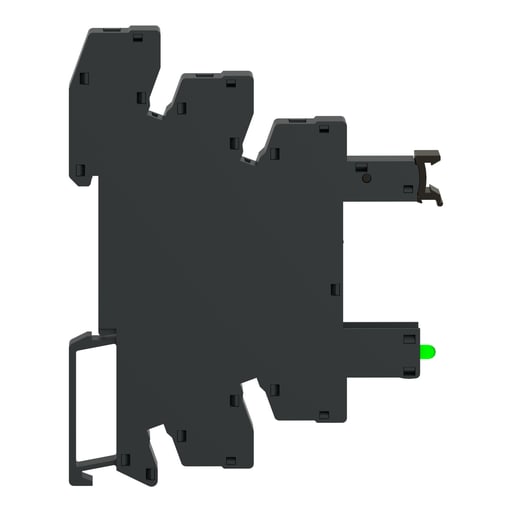

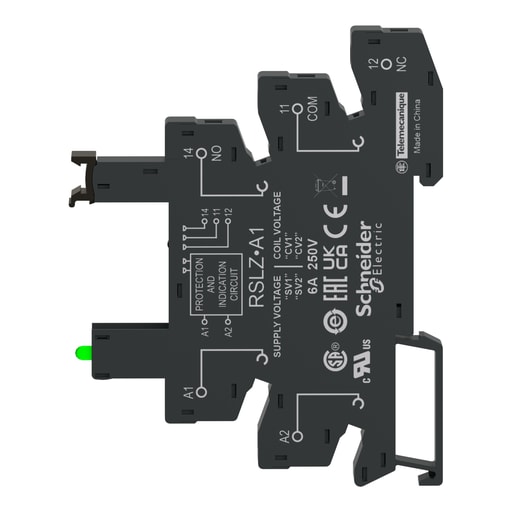

Square-D / Schneider - SQD RSLZVA3 socket equipped with LE

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 606480078043

  • Applications - PLUG-IN RELAY RSL 1 C/O 60 V DC-PLUG-IN RELAY RSL

  • Catalog Number - RSLZVA3

  • Country of Origin - China

  • ERP_productname - SQD RSLZVA3 RELAY + SPRING CLAMP SOCKET 48 VAC/VDC

Packaging

  • 1 ea

EAN

03606480078040

Part #

181005

Catalog #

RSLZVA3

Commercial reference

RSLZVA3

12-Digit UPC:

606480078043

Applications:

PLUG-IN RELAY RSL 1 C/O 60 V DC-PLUG-IN RELAY RSL

Catalog Number:

RSLZVA3

Country of Origin:

China

ERP_productname:

SQD RSLZVA3 RELAY + SPRING CLAMP SOCKET 48 VAC/VDC

Family Brand Name:

Schneider Electric

Heights:

78.6 mm

Size:

6.2 MM,78.6 MM,95 MM

Sub Brand:

RSLZ

Tc Connection:

CONNECTOR, 1 X 0.2...1 X 2.5 MMA. AWG 24...AWG 14) FLEXIBLE WITH CABLE END-CONNECTOR, 1 X 0.2...1 X 2.5 MMA. AWG 24...AWG 14) SOLID WITHOUT CABLE END

Type:

FLAT,SOCKET

Voltage:

300 Volt

Widths:

6.2 mm

SoneparProductId:

SKU_US_31247858

"This Harmony RSL plug-in socket with LED indicator has a rated voltage of 110V AC/DC." "It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0 0 Prop 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: RSLZ5; RSLZ2; RSLZ3 - Cross Sell Products: RSL1PVFU; RSL1AB4ND
