Square-D / Schneider - SQD RUMC31GD universal plug in rela

Essential specifications

12-Digit UPC - 785901508106
Amperage - 10 Amp 250 V AC-10 Amp 28 V DC,10 Amp 277 V AC UL-10 Amp 30 V DC UL-10 Amp 277 V AC SAME POLARITY)CSA-10 Amp 30 V DC CSA-5 Amp 250 V AC NC)IEC-5 Amp 28 V DC NC)IEC-10 Amp 250 V AC NO)IEC-10 Amp 28 V DC NO)IEC
Catalog Number - RUMC31GD
Country of Origin - China
ERP_productname - SQD RUMC31GD RELAY 3CO CYL PINS 10A@250V 250VDC COIL TEST

Packaging

1 ea

EAN

03606480626876

Part #

115243

Catalog #

RUMC31GD

Commercial reference

RUMC31GD

12-Digit UPC:

785901508106

Amperage:

10 Amp 250 V AC-10 Amp 28 V DC,10 Amp 277 V AC UL-10 Amp 30 V DC UL-10 Amp 277 V AC SAME POLARITY)CSA-10 Amp 30 V DC CSA-5 Amp 250 V AC NC)IEC-5 Amp 28 V DC NC)IEC-10 Amp 250 V AC NO)IEC-10 Amp 28 V DC NO)IEC

Catalog Number:

RUMC31GD

Country of Origin:

China

ERP_productname:

SQD RUMC31GD RELAY 3CO CYL PINS 10A@250V 250VDC COIL TEST

Family Brand Name:

Schneider Electric

Sub Brand:

RUM

Type:

Plug-in relay

SoneparProductId:

SKU_US_197608558

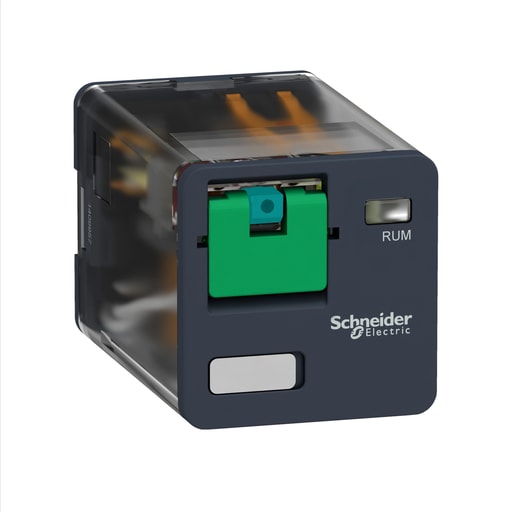

"This Harmony RUM universal plug-in relay uses cylindrical pins, has a control coil voltage of 125V DC and has 3 changeover contacts triple pole double throw with a rating of 10A." "It provides a complete system solution for the most demanding applications." "It also offers one-step lockable test button." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0 Compatible Products: RUW101MW; RUW240BD; RUZC3M; RXZL520
