Square-D / Schneider - SQD RUMC32JD universal plug in rela

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 606480626992

  • Amperage - 10 Amp 250 V AC-10 Amp 28 V DC,10 Amp 277 V AC UL-10 Amp 30 V DC UL-10 Amp 277 V AC SAME POLARITY)CSA-10 Amp 30 V DC CSA-5 Amp 250 V AC NC)IEC-5 Amp 28 V DC NC)IEC-10 Amp 250 V AC NO)IEC-10 Amp 28 V DC NO)IEC

  • Catalog Number - RUMC32JD

  • Country of Origin - China

  • ERP_productname - SQD RUMC32JD RELAY 3CO CYL PIN 10A@250V 12VDC COIL LED+TEST

Packaging

  • 1 ea

EAN

03606480626999

Part #

157594

Catalog #

RUMC32JD

Commercial reference

RUMC32JD

12-Digit UPC:

606480626992

Amperage:

10 Amp 250 V AC-10 Amp 28 V DC,10 Amp 277 V AC UL-10 Amp 30 V DC UL-10 Amp 277 V AC SAME POLARITY)CSA-10 Amp 30 V DC CSA-5 Amp 250 V AC NC)IEC-5 Amp 28 V DC NC)IEC-10 Amp 250 V AC NO)IEC-10 Amp 28 V DC NO)IEC

Catalog Number:

RUMC32JD

Country of Origin:

China

ERP_productname:

SQD RUMC32JD RELAY 3CO CYL PIN 10A@250V 12VDC COIL LED+TEST

Family Brand Name:

Schneider Electric

Sub Brand:

RUM

Type:

Plug-in relay

SoneparProductId:

SKU_US_25456202

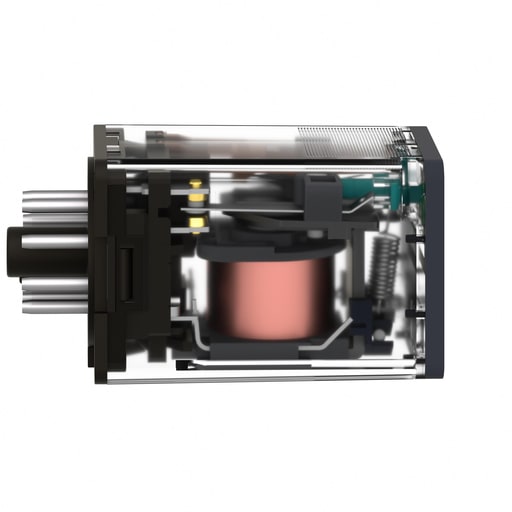

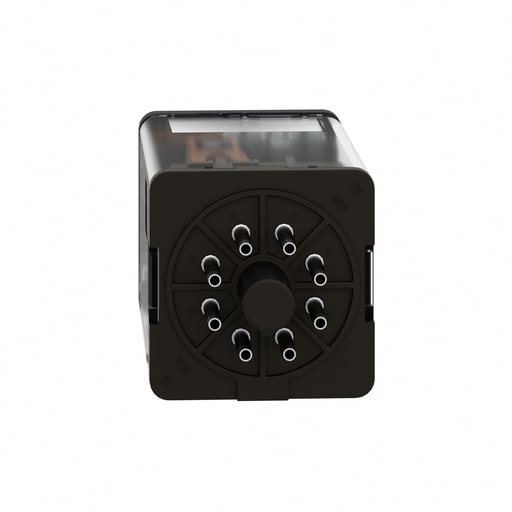

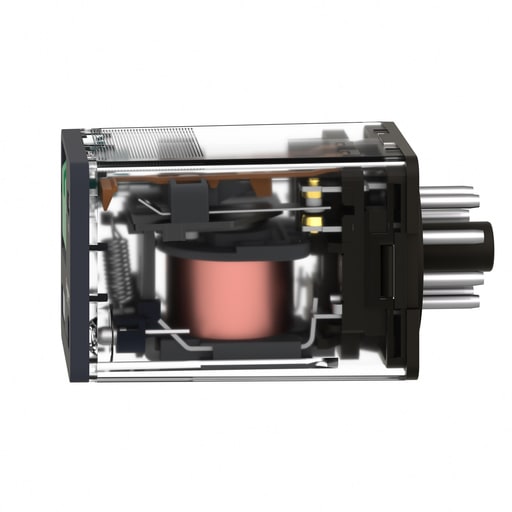

"This Harmony RUM universal plug-in relay uses cylindrical pins, has a control coil voltage of 12V DC and has 3 changeover contacts triple pole double throw with a rating of 10A." "It provides a complete system solution for the most demanding applications." "It also offers one-step lockable test button and .Power On. LED for readiness." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0 Prop 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: RUW240BD; RUZC3M; RUW101MW; RXZL520
