Square-D / Schneider - SQD RUMF21BD Harmony, Universal plu

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 606480627135

  • Amperage - 10 Amp 250 V AC-10 Amp 28 V DC,10 Amp 277 V AC UL-10 Amp 30 V DC UL-10 Amp 30 V DC CSA-5 Amp 250 V AC NC)IEC-5 Amp 28 V DC NC)IEC-10 Amp 250 V AC NO)IEC-10 Amp 28 V DC NO)IEC-10 Amp 277 V AC CSA

  • Catalog Number - RUMF21BD

  • Country of Origin - China

  • ERP_productname - SQD RUMF21BD RELAY 2CO QC PINS 10A @ 250V 24VDC COIL TEST

Packaging

  • 1 ea

EAN

03606480627132

Part #

207486

Catalog #

RUMF21BD

Commercial reference

RUMF21BD

12-Digit UPC:

606480627135

Amperage:

10 Amp 250 V AC-10 Amp 28 V DC,10 Amp 277 V AC UL-10 Amp 30 V DC UL-10 Amp 30 V DC CSA-5 Amp 250 V AC NC)IEC-5 Amp 28 V DC NC)IEC-10 Amp 250 V AC NO)IEC-10 Amp 28 V DC NO)IEC-10 Amp 277 V AC CSA

Catalog Number:

RUMF21BD

Country of Origin:

China

ERP_productname:

SQD RUMF21BD RELAY 2CO QC PINS 10A @ 250V 24VDC COIL TEST

Family Brand Name:

Schneider Electric

Sub Brand:

RUM

Type:

Plug-in relay

SoneparProductId:

SKU_US_30266708

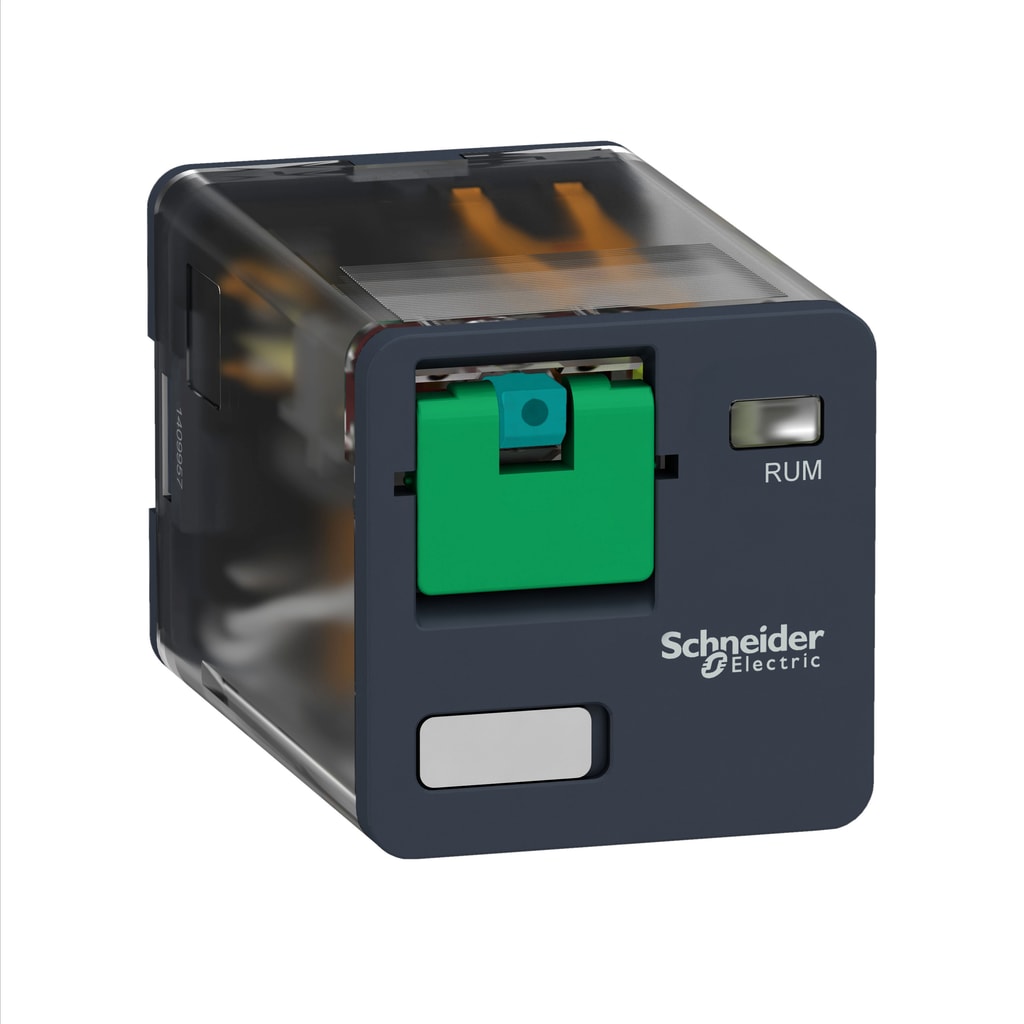

This Harmony RUM universal plug-in relay uses flat pins, has a control coil voltage of 24V DC and has 2 changeover contacts double pole double throw with a rating of 10A." "It provides a complete system solution for the most demanding applications." "It also offers one-step lockable test button." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0
