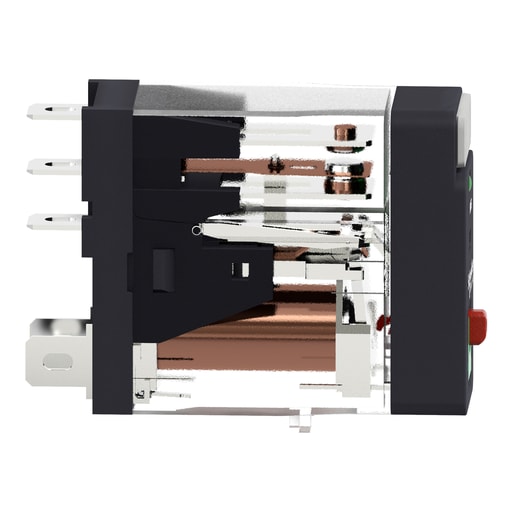

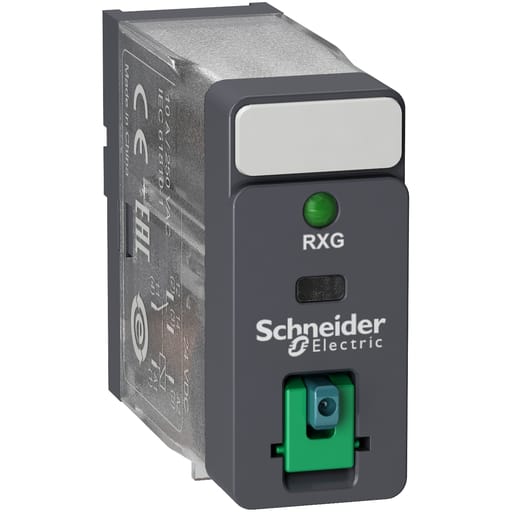

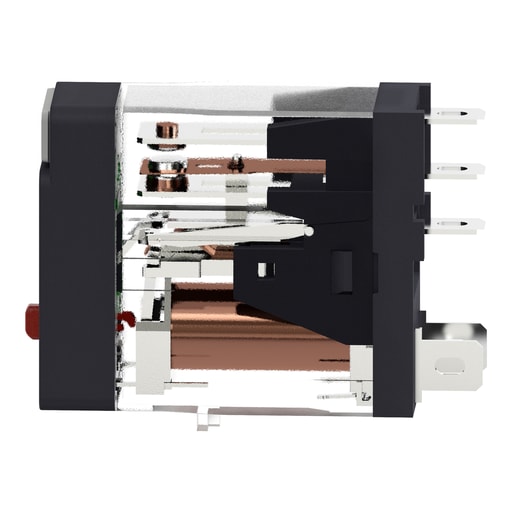

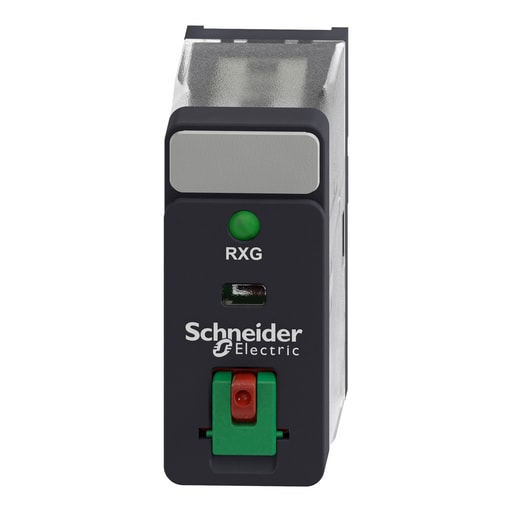

Square-D / Schneider - SQD RXG12BD interface plug in relay

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 606480688730

  • Amperage - 10 Amp 250 V AC,10 Amp 30 V DC) UL-10 Amp 30 V DC) IEC-10 Amp 250 V AC) IEC-10 Amp 250 V AC) UL

  • Catalog Number - RXG12BD

  • Country of Origin - USA

  • ERP_productname - SQD RXG12BD RELAY 1CO 10A@250VAC 24VDC COIL LED+LTB

Packaging

  • 1 ea

EAN

03606480688737

Part #

105169

Catalog #

RXG12BD

Commercial reference

RXG12BD

12-Digit UPC:

606480688730

Amperage:

10 Amp 250 V AC,10 Amp 30 V DC) UL-10 Amp 30 V DC) IEC-10 Amp 250 V AC) IEC-10 Amp 250 V AC) UL

Catalog Number:

RXG12BD

Country of Origin:

USA

ERP_productname:

SQD RXG12BD RELAY 1CO 10A@250VAC 24VDC COIL LED+LTB

Family Brand Name:

Schneider Electric

Sub Brand:

RXG

Type:

Plug-in relay

SoneparProductId:

SKU_US_27219808

"This Harmony RXG plug-in relay socket has a coil control voltage of 24V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 10A." "It has large choice of number of contacts for high rated current use." "It also offers lockable test button and LED indicator." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere thanks to its 16mm width." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0 0 Prop 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: RGZE1S35M - Cross Sell Products: RXG12BDPV; RXG11BD; RXG13BD - Related Products: LC1D09BD; TM221CE16T
