Square-D / Schneider - SQD RXG25F7 Interface plug in relay
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 606480689348
Amperage - 5 Amp 250 V AC,5 Amp 30 V DC) UL-5 Amp 30 V DC) IEC-5 Amp 250 V AC) IEC-5 Amp 250 V AC) UL
Catalog Number - RXG25F7
Country of Origin - China
ERP_productname - SQD RXG25F7 RELAY 2CO 5A@250VAC 120VAC COIL CLEAR
Packaging
1 ea
EAN
03606480689345
Part #
223957
Catalog #
RXG25F7
Commercial reference
RXG25F7
12-Digit UPC:
606480689348
Amperage:
5 Amp 250 V AC,5 Amp 30 V DC) UL-5 Amp 30 V DC) IEC-5 Amp 250 V AC) IEC-5 Amp 250 V AC) UL
Catalog Number:
RXG25F7
Country of Origin:
China
ERP_productname:
SQD RXG25F7 RELAY 2CO 5A@250VAC 120VAC COIL CLEAR
Family Brand Name:
Schneider Electric
Sub Brand:
RXG
Type:
Plug-in relay
SoneparProductId:
SKU_US_126099510

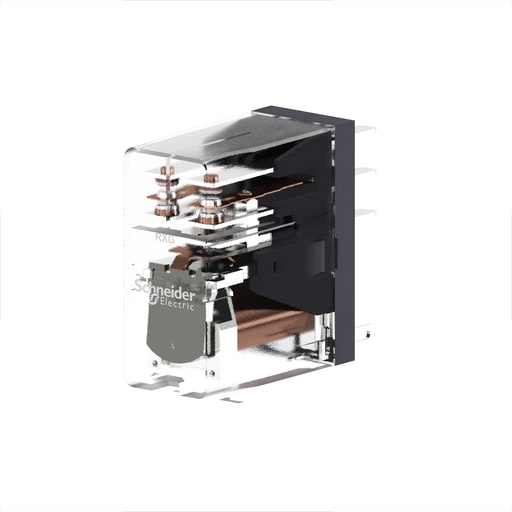

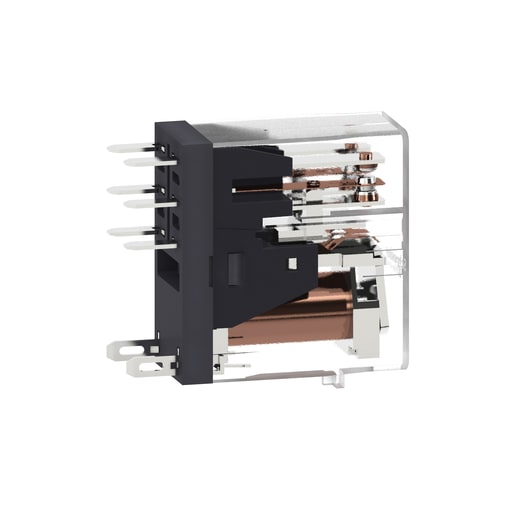

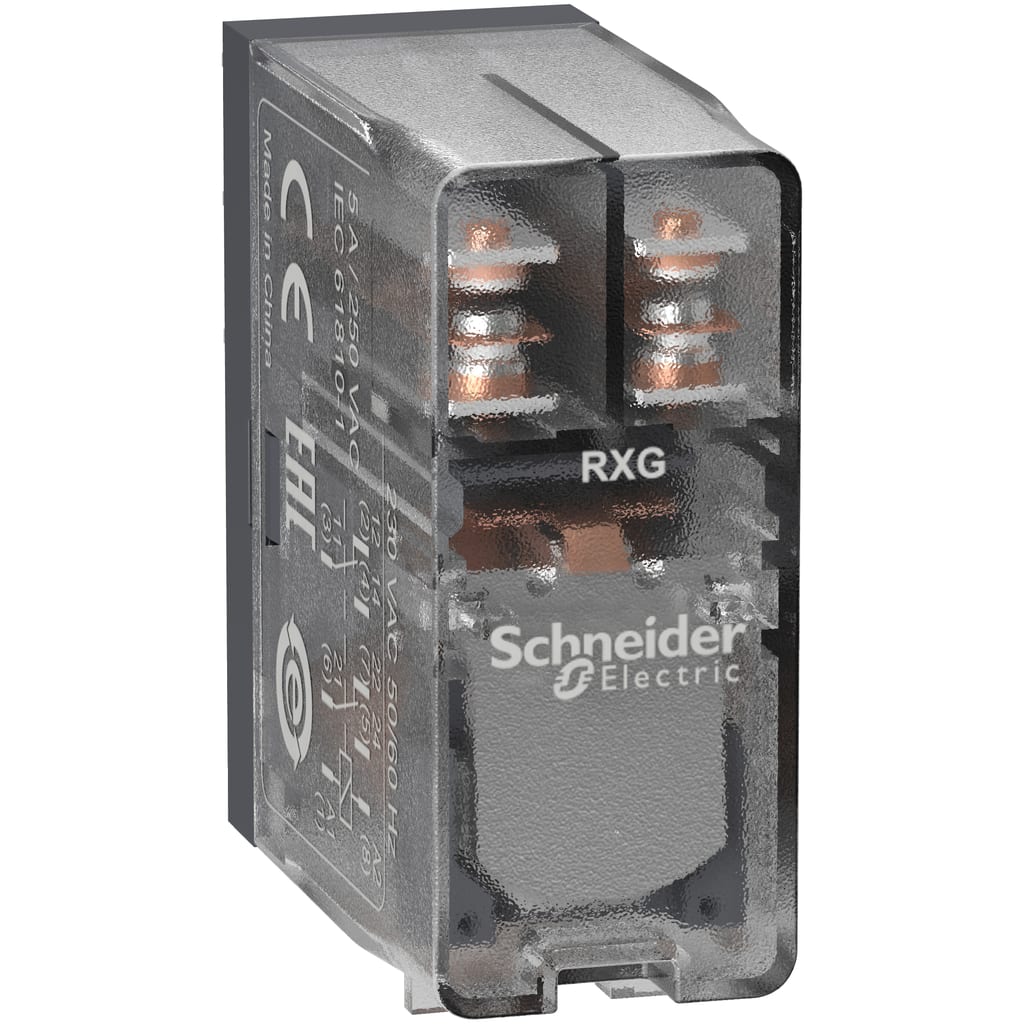

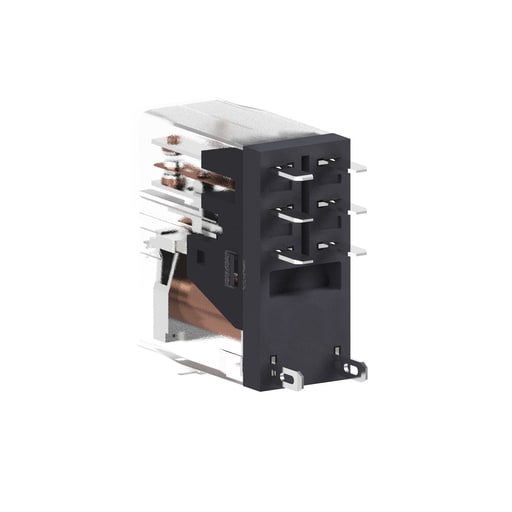

This Harmony RXG plug-in relay socket has a coil control voltage of 120V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 5A." "It has large choice of number of contacts for high rated current use with space-saving design." "The faston pin terminal mounts quickly and securely." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0
