Square-D / Schneider - SQD RXM3AB2ED PLUG-IN RELAY 250V 10

Essential specifications

12-Digit UPC - 785901511465
Amperage - 10 Amp 250 V AC-10 Amp 28 V DC,10 Amp 28 V DC) NO IEC-10 Amp 250 V AC) NO IEC-5 Amp 28 V DC) NC IEC-5 Amp 250 V AC) NC IEC-10 Amp 30 V DC) UL-10 Amp 277 V AC) UL
Catalog Number - RXM3AB2ED
Country of Origin - China
ERP_productname - SQD RXM3AB2ED PLUG-IN RELAY 250V 10A RXM +OPTIONS

Packaging

1 ea

EAN

03389119403658

Part #

171446

Catalog #

RXM3AB2ED

Commercial reference

RXM3AB2ED

12-Digit UPC:

785901511465

Amperage:

10 Amp 250 V AC-10 Amp 28 V DC,10 Amp 28 V DC) NO IEC-10 Amp 250 V AC) NO IEC-5 Amp 28 V DC) NC IEC-5 Amp 250 V AC) NC IEC-10 Amp 30 V DC) UL-10 Amp 277 V AC) UL

Catalog Number:

RXM3AB2ED

Country of Origin:

China

ERP_productname:

SQD RXM3AB2ED PLUG-IN RELAY 250V 10A RXM +OPTIONS

Family Brand Name:

Schneider Electric

Size:

80.35 MM,82.8 MM

Sub Brand:

RXM

Type:

FLAT,PLUG-IN RELAY

SoneparProductId:

SKU_US_29840306

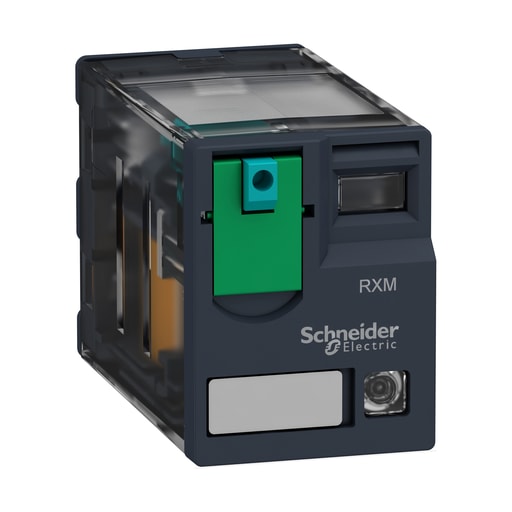

This Zelio RXM miniature plug-in relay has a coil control voltage of 48V DC and has 3 changeover contacts 3PDT (triple pole double throw) with a rating of 10A. It has large choice of number of contacts for high rated current use with space-saving design. It also offers one-step loackable test button and .Power On. LED for readiness. It helps to reduce the size of enclosures and increase machine reliability: you can mount nearly everywhere. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs). Status display with LED: clearly signal both in the day and night.
