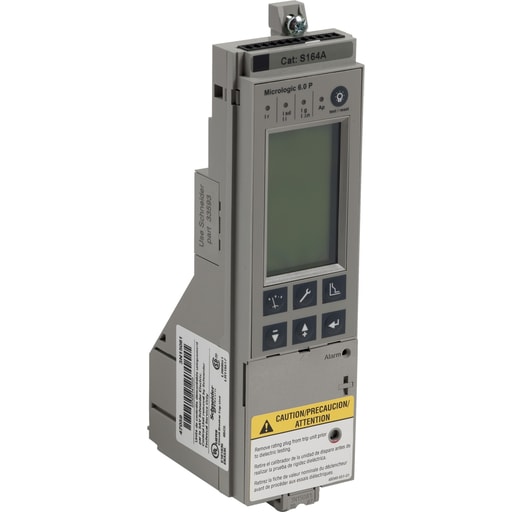

Square-D / Schneider - SQD S164A CIRCUIT BREAKER MICROLOGIC TRIP UNIT
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901886808
Applications - FIELD INSTALLABLE,METERING-ADVANCE PROTECTION
Catalog Number - S164A
Country of Origin - USA
Depths - 2.88 Inch
Packaging
1 ea
EAN
00785901886808
Part #
110174
Catalog #
S164A
Commercial reference
S164A
12-Digit UPC:
785901886808
Applications:
FIELD INSTALLABLE,METERING-ADVANCE PROTECTION
Catalog Number:
S164A
Country of Origin:
USA
Depths:
2.88 Inch
ERP_productname:
SQD S164A CIRCUIT BREAKER MICROLOGIC TRIP UNIT
Family Brand Name:
Square D
Heights:
7.85 Inch
Sub Brand:
MICROLOGIC
Trip Type:
ELECTRONIC
Type:
TRIP UNIT
Widths:
2.11 in
SoneparProductId:
SKU_US_32222905
Square D PowerPacT P, M and R-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits Molded case circuit breakers are available with either basic electronic trip system or Micrologic electronic trip units. PowerPacT P- and R-frame molded case circuit breakers may be specified with any of the following MicroLogic Electronic Trip Units This MicroLogic Standard 6.0P Trip Unit with field-interchangeable long-time rating plug has LSIG configuration and Metering with Advanced Protection feature Adjustable rating plugs are offered in eight different ranges of long-time pickup adjust.ments. Each adjustment times the sensor rating (lr x In) of the circuit breaker sets the long-time pickup value of the circuit breaker Trip unit provides true RMS sensing, LED long-time pickup indication and thermal imaging. Also it has available test kits. Prop 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
