Square-D / Schneider - SQD SQR14100XX Switch module, X Ser

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901534471

  • Catalog Number - SQR14100XX

  • Country of Origin - China

  • Depths - 35 mm

  • ERP_productname - SQD SQR14100XX SWITCH MODULE, X SERIES, 15A, SINGLE POLE, 1 WAY, 10 PCS

Packaging

  • 1 ea

EAN

00785901534471

Part #

324108

Catalog #

SQR14100XX

Commercial reference

SQR14100XX

12-Digit UPC:

785901534471

Catalog Number:

SQR14100XX

Country of Origin:

China

Depths:

35 mm

ERP_productname:

SQD SQR14100XX SWITCH MODULE, X SERIES, 15A, SINGLE POLE, 1 WAY, 10 PCS

Family Brand Name:

Schneider Electric

Heights:

103 mm

Material:

Metal: Fixing Frame,Plastic: Strap

Mounting Type:

Flush,Screws

Number of Gangs:

1 Gang

Number of Poles:

1 Pole

Widths:

37 mm

SoneparProductId:

SKU_US_287849409

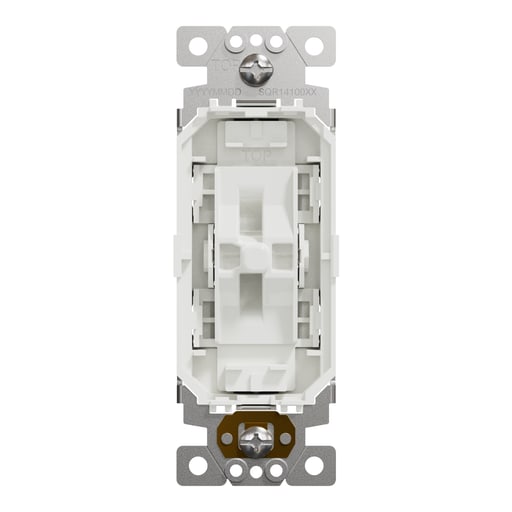

The Square D X Series 15A Single-Pole Switch Module with Side Wire Clamps allows you to swap out faceplates quickly and easily without removing the switch and rewiring. The rated operational voltage of this switch is 120V and 277V. Its unique patented switch module is designed to support the swap-out of color rocker plate cover plate (not provided) that easily snaps into place for a modern, flush-facing finish to your walls. Sold in 10 pieces, the connection are screw terminal. Its matching mounting box can be recessed into the surface of the wall for flush mounting. This device is compatible with the rocker plate and the cover plates of the XD series, so that the personalization of your interior design with many styles of d.cor is possible. This switch has a width of 37 mm, a height of 103 mm and a depth of 35 mm. The UL certified switch without the rocker plate allows for use during rough-in phase. It supports upgrading the color or design of the switch after initial installation without removing the switch from the wall. By being mercury free and heavy metal free, this switch is cUlus certified. Its Ue rated operational voltage is 120VAC. Its Ie rated operational current is 15A. This device enables flush mounting. The dimensions are (W) 37mm x (H) 103mm x (D) 35mm. This product comes with 10 pieces per pack. This device is compliant with UL and cULus certification. Its mercury free and heavy metal free. Prop 65: WARNING: This product can expose you to chemicals including: carbon black, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: SQWS141001BK; SQWS141001GY; SQR16101LA; SQWS141001LA; SQWS141001WH; SQWS141002BK; SQWS141002GY; SQWS141002LA; SQWS141002WH; SQWS141003BK; SQWS141003GY; SQWS141003LA; SQWS141003WH; SQWS141004BK; SQWS141004GY; SQWS141004LA; SQWS141004WH; SQWS141005BK; SQWS141005GY; SQWS141005LA; SQWS141005WH - Cross Sell Products: SQR44101WH; SQR51101WH; SQR16100BK; SQR16100GY; SQR16100LA; SQR16100WH; SQWP141001BK; SQWP141001GY; SQWP141001LA; SQWP141001WH; SQWP141002WH - Up Sell Products: SQR22601WH; SQR226U1WHW; SQR141U1WHW; SQR73101WH; SQR73105WH
