Square-D / Schneider - SQD SQR44102WH Socket-outlet, X Ser

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901539568

  • Catalog Number - SQR44102WH

  • Color - White

  • Depths - 27 mm

  • ERP_productname - SQD SQR44102WH SOCKET-OUTLET, X SERIES, 15A, DECORATOR, TAMPER RESISTANT, RESIDENTIAL, WHITE, MATTE FINISH, 10 PCS

Packaging

  • 1 ea

EAN

00785901539568

Part #

324188

Catalog #

SQR44102WH

Commercial reference

SQR44102WH

12-Digit UPC:

785901539568

Catalog Number:

SQR44102WH

Color:

White

Depths:

27 mm

ERP_productname:

SQD SQR44102WH SOCKET-OUTLET, X SERIES, 15A, DECORATOR, TAMPER RESISTANT, RESIDENTIAL, WHITE, MATTE FINISH, 10 PCS

Family Brand Name:

Square D

Heights:

103 mm

Material:

Metal: Fixing Frame,Plastic: Strap

Mounting Type:

Flush,Screws

Widths:

36 mm

SoneparProductId:

SKU_US_256968475

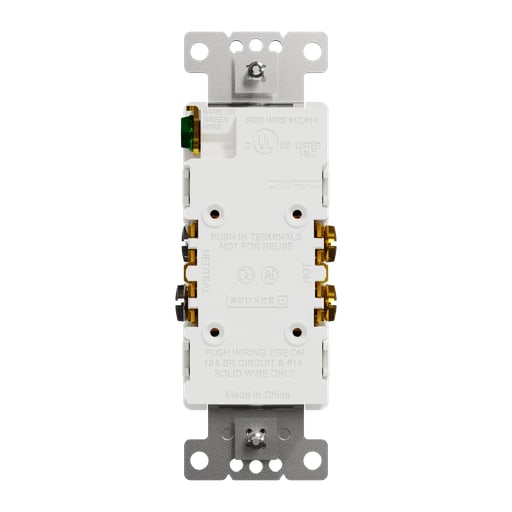

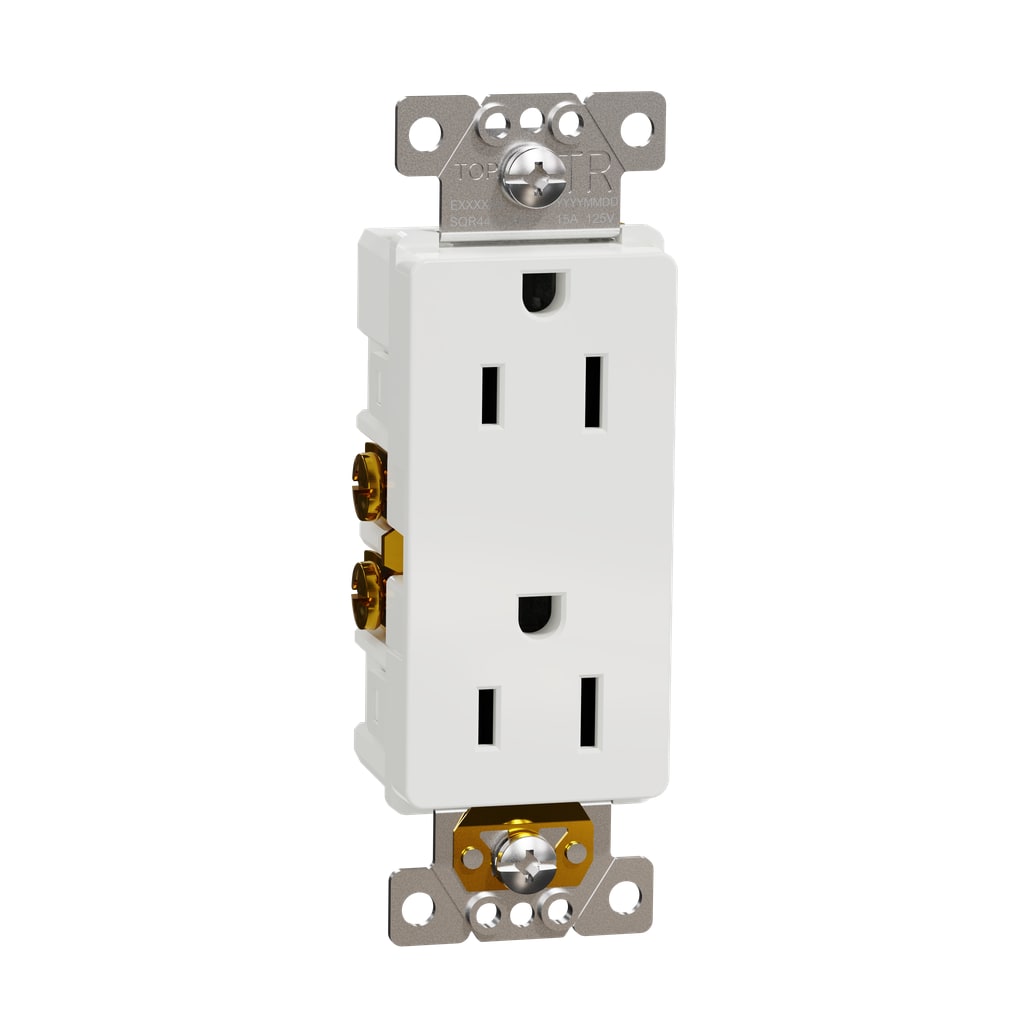

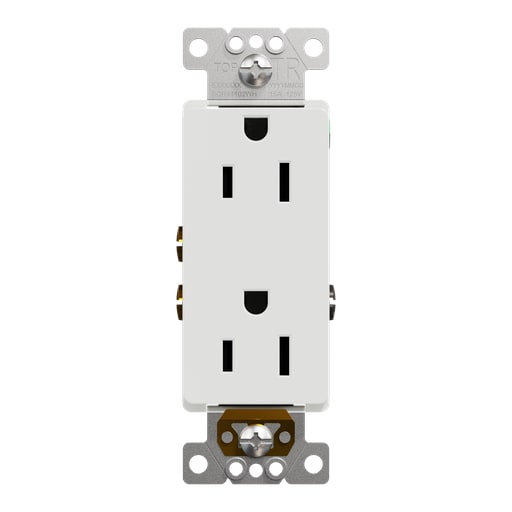

The Square D X Series 15A 125V Tamper Resistant Duplex Decorator Receptacle with side wire clamps provides a fast, safe way to update the look of your home's interior with new, modern receptacles. Enjoy fast wiring with .no-wrapping. screw installation and a self-grounding clip. Elevate safety with discrete, tamper resistant shutters that help keep inappropriate objects out of the socket. Complete the look with one of the Square D X Series cover plates (not provided) that easily snaps into place for a modern, flush-facing finish to your walls. Sold in a 10 pack, enjoy a consistent look across your room or home with the full line of Square D X Series switches, dimmers, sensors, and receptacles. The connection terminals of this outlet socket are push-in termination and screw terminal. Its matching mounting box can be recessed into the surface of the wall for flush mounting. This receptacle is tamper resistant with discrete black shutters. This socket outlet has a white frame. The self-grounding feature is a brass ground contact which provides ground retention to metal boxes that eliminates the need to use a ground screw. This socket has a width of 1.42 in (36 mm), a height of 4.06 in (103 mm) and a depth of 1.06 (27 mm). By satisfying the NEMA 5-15R, UL 498 standards, this socket outlet is cULus certified. X Series normalizes an array of new features, such as flush facing, easy installations, and connectivity, establishing a new benchmark for residential wiring devices. Compatible Products: SQWS141001WH; SQWS141001BK; SQWS141001GY; SQWS141001LA; SQWS141002BK; SQWS141002GY; SQWS141002LA; SQWS141002WH; SQWS141003BK; SQWS141003GY; SQWS141003LA; SQWS141003WH; SQWS141004BK; SQWS141004GY; SQWS141004LA; SQWS141004WH; SQWS141005BK; SQWS141005GY; SQWS141005LA; SQWS141005WH - Cross Sell Products: SQWS141001WH; SQWS141002WH - Up Sell Products: SQR55141WH; SQR55153WH; SQR441U1WHW; SQR51101WH; SQR57101WH
