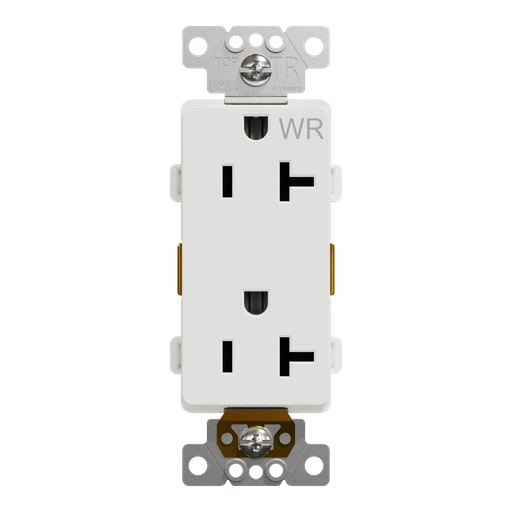

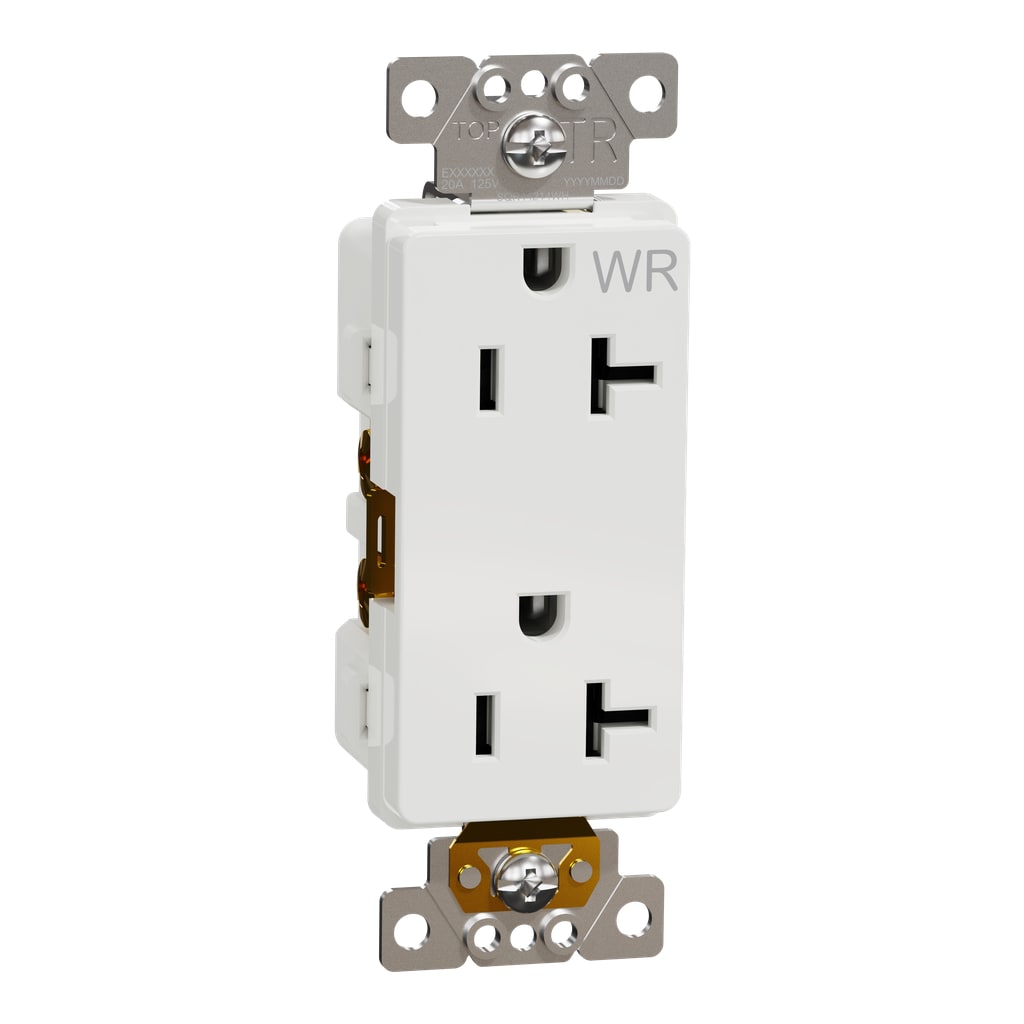

Square-D / Schneider - SQD SQR44214WH Socket-outlet, X Ser
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901544319
Catalog Number - SQR44214WH
Color - White
Depths - 31 mm
ERP_productname - SQD SQR44214WH X SERIES 20A 125V OUTDOOR TAMPER RESISTANT HEAVY DUTY DUPLEX DECORATOR RECEPTACLE BACK WIRE CLAMPS MATTE WHITE
Packaging
1 ea
EAN
00785901544319
Part #
112348
Catalog #
SQR44214WH
Commercial reference
SQR44214WH
12-Digit UPC:
785901544319
Catalog Number:
SQR44214WH
Color:
White
Depths:
31 mm
ERP_productname:
SQD SQR44214WH X SERIES 20A 125V OUTDOOR TAMPER RESISTANT HEAVY DUTY DUPLEX DECORATOR RECEPTACLE BACK WIRE CLAMPS MATTE WHITE
Family Brand Name:
Square D
Heights:
103 mm
Material:
Metal: Fixing Frame,Plastic: Strap
Mounting Type:
Flush,Screws
Widths:
39 mm
SoneparProductId:
SKU_US_244562328

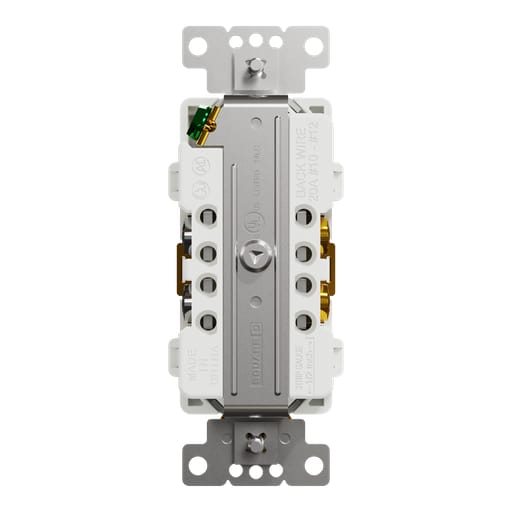

It provides superior corrosion, temperature, and UV resistance, preventing discoloration and aging, ideal for outdoor and indoor use. Self-grounded with a brass contact to ensure device is grounded directly to metal boxes, eliminating the need to bond the device with the ground screw. Side pressure plates speed installation with secure push-in connection, enhanced wire snip access to split circuit break-off tab, and grounding strap hole designed for speed wrapping installation. Compatible Products: SQWS141001WH; SQWS141001BK; SQWS141001GY; SQWS141001LA; SQWS141002BK; SQWS141002GY; SQWS141002LA; SQWS141002WH; SQWS141003BK; SQWS141003GY; SQWS141003LA; SQWS141003WH; SQWS141004BK; SQWS141004GY; SQWS141004LA; SQWS141004WH; SQWS141005BK; SQWS141005GY; SQWS141005LA; SQWS141005WH - Cross Sell Products: SQWS141001WH; SQWS141002WH
