Square-D / Schneider - SQD SQR51101BK Socket-outlet, X Ser

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901544531

  • Catalog Number - SQR51101BK

  • Color - Black

  • Country of Origin - China

  • Depths - 41 mm

Packaging

  • 1 ea

EAN

00785901544531

Part #

112342

Catalog #

SQR51101BK

Commercial reference

SQR51101BK

12-Digit UPC:

785901544531

Catalog Number:

SQR51101BK

Color:

Black

Country of Origin:

China

Depths:

41 mm

ERP_productname:

SQD SQR51101BK X SERIES 15A 125V TAMPER RESISTANT GFCI DUPLEX DECORATOR RECEPTACLE BACK WIRE CLAMPS MATTE BLACK

Family Brand Name:

Schneider Electric

Heights:

103 mm

Material:

Metal: Fixing Frame,Plastic: Strap

Mounting Type:

Flush,Screws

Number of Gangs:

1 Gang

Widths:

42 mm

SoneparProductId:

SKU_US_244562336

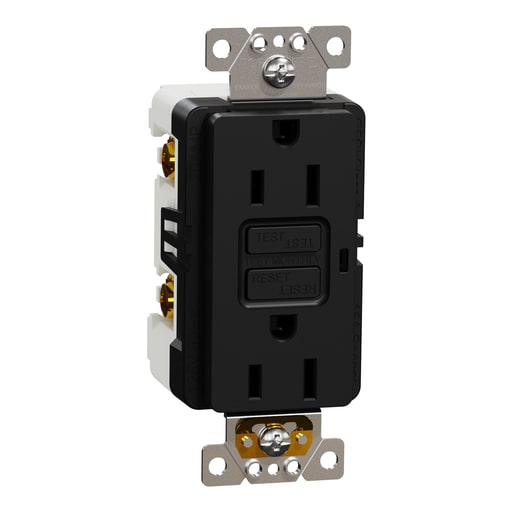

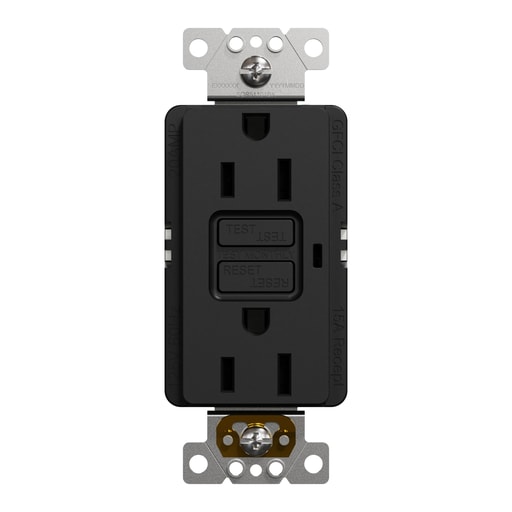

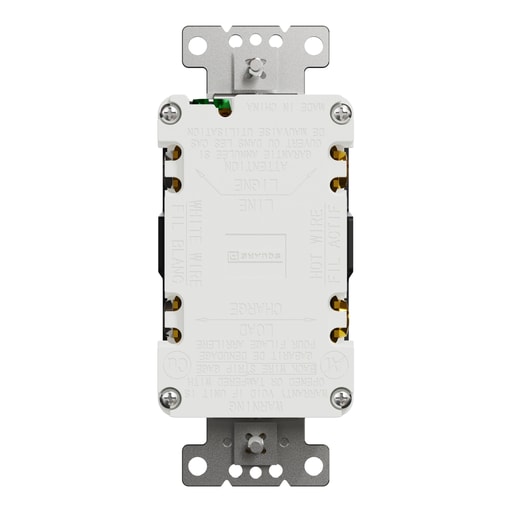

X Series residential wiring devices socket receptacle featuring an array of new features, such as flush mounting, easy installation, and connectivity. Featuring high impact-resistant, non-glossy, easy-to-clean thermoplastic body for attractive, long lasting operation. Complete the look with one of the Square D X Series cover plates (not provided) that easily snaps into place for a modern, flush-facing finish to your walls. Enjoy a consistent look in your room or home with the full line of Square D X Series switches, dimmers, sensors, and receptacles. Each outlet socket has two poles and a ground. The connection terminals of this outlet socket are push-in termination and screw terminal. Its matching mounting box can be recessed into the surface of the wall for flush mounting. This receptacle is tamper resistant with discrete black shutters. This socket outlet has a black frame. The self-grounding feature is a brass ground contact which provides ground retention to metal boxes that eliminates the need to use a ground screw. This socket has a width of 1.65 in (42 mm), a height of 4.06 in (103 mm) and a depth of 1.61 in (41 mm). By satisfying the ICES-003, UL 498, UL 943 standards, this socket outlet is cULus certified. X Series normalizes an array of new features, such as flush facing, easy installations, and connectivity, establishing a new benchmark for residential wiring devices. Prop 65: WARNING: This product can expose you to chemicals including: carbon black, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: SQWS141001BK; SQWS141002BK; SQWS141003BK; SQWS141004BK; SQWS141005BK - Cross Sell Products: SQWS141001BK; SQWVM51101BK; SQWVS51101BK - Up Sell Products: SQR55141BK; SQR55153BK; SQR55241BK
