Square-D / Schneider - SQD SSL1A12BD plug in relay, Harmon
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 606480579724
Amperage - 2 Amp
Applications - ZELIO RELAY
Catalog Number - SSL1A12BD
Country of Origin - China
Packaging
1 ea
EAN
03606480579721
Part #
219503
Catalog #
SSL1A12BD
Commercial reference
SSL1A12BD
12-Digit UPC:
606480579724
Amperage:
2 Amp
Applications:
ZELIO RELAY
Catalog Number:
SSL1A12BD
Country of Origin:
China
Depths:
15 mm
ERP_productname:
SQD SSL1A12BD SSR SLIM 1 CHANN, 2A@24-280VAC ZERO, 15-30VDC
Family Brand Name:
Schneider Electric
Heights:
28 mm
Impedance:
3500 ohm
Number of Phases:
1 Phase
Output Voltage:
24-280 V
Short Circuit Current Ratng:
5000 A
Size:
0.59 in
Sub Brand:
SSL
Type:
Solid state relay
Widths:
5 mm
SoneparProductId:
SKU_US_126084285

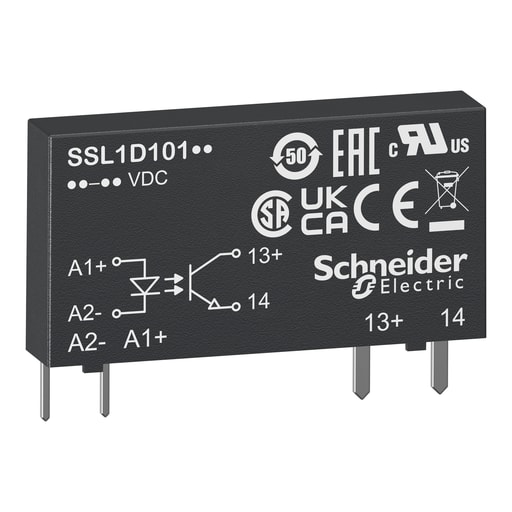

This Harmony SSL slim interfacing solid state plug-in relay is rated 2A, is controlled with a 3V to 12V DC input, has a rated load voltage of 24V to 280V AC with zero voltage switching, ideal for resistive loads. It is 6mm width, including socket, to save space in your control cabinets. It is also silent and reliable thanks to the absence of moving contacts. It is shock, vibration and pollution resistant thanks to its IP67, it makes it ideal for harsh industrial environments. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: SSLZVA1; RSLZ5 - Cross Sell Products: TM221CE16T
