Square-D / Schneider - SQD SSL1D03BD plug in relay, Harmon
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 606480579656
Amperage - 3.5 Amp
Applications - ZELIO RELAY
Catalog Number - SSL1D03BD
Country of Origin - Mexico
Packaging
1 ea
EAN
03606480579653
Part #
198096
Catalog #
SSL1D03BD
Commercial reference
SSL1D03BD
12-Digit UPC:
606480579656
Amperage:
3.5 Amp
Applications:
ZELIO RELAY
Catalog Number:
SSL1D03BD
Country of Origin:
Mexico
Depths:
15 mm
ERP_productname:
SQD SSL1D03BD SSR SLIM 1 CHANN, 3.5A@1-24VDC, 15-30VDC
Family Brand Name:
Schneider Electric
Heights:
28 mm
Impedance:
3500 ohm
Number of Phases:
1 Phase
Output Voltage:
...30 V
Size:
0.59 in
Sub Brand:
SSL
Type:
Solid state relay up to 10 A
Widths:
5 mm
SoneparProductId:
SKU_US_73550409

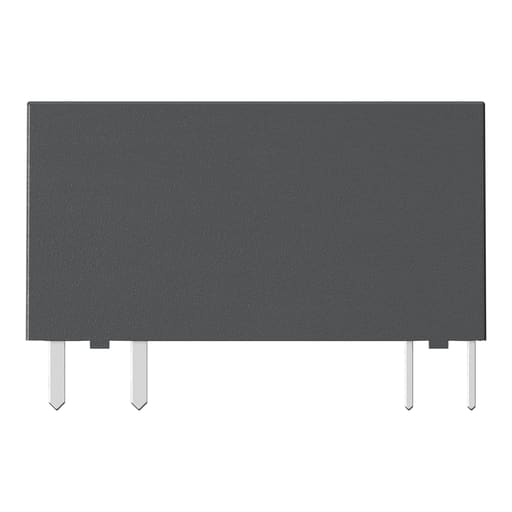

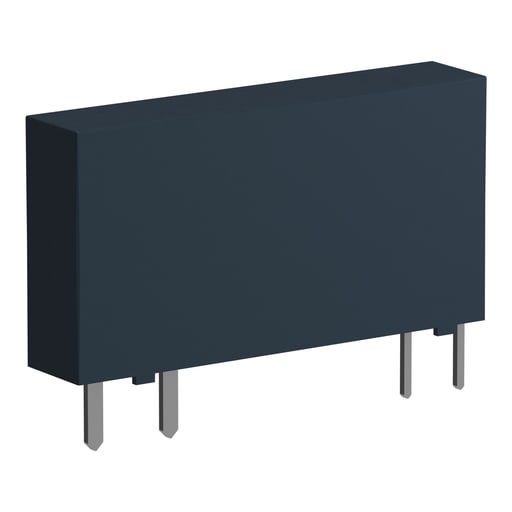

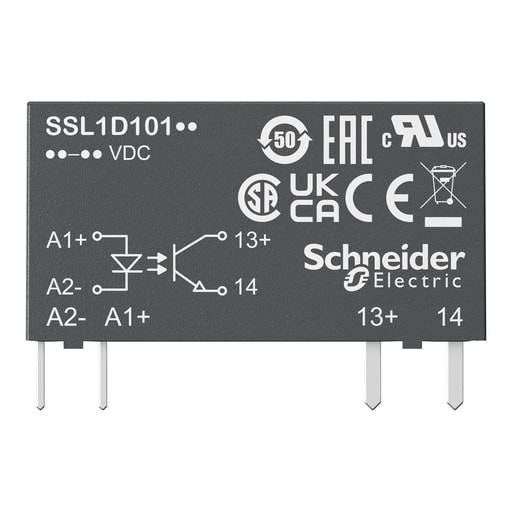

This Harmony SSL slim interfacing solid state plug-in relay is rated 3.5A, is controlled with a 15V to 30V DC input, has a rated load voltage of 1V to 24V DC with DC switching. It is 6mm width, including socket, to save space in your control cabinets. It is also silent and reliable thanks to the absence of moving contacts. It is shock, vibration and pollution resistant thanks to its IP67, it makes it ideal for harsh industrial environments. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: SSLZVA1; RSLZ5 - Cross Sell Products: TM221CE16T
