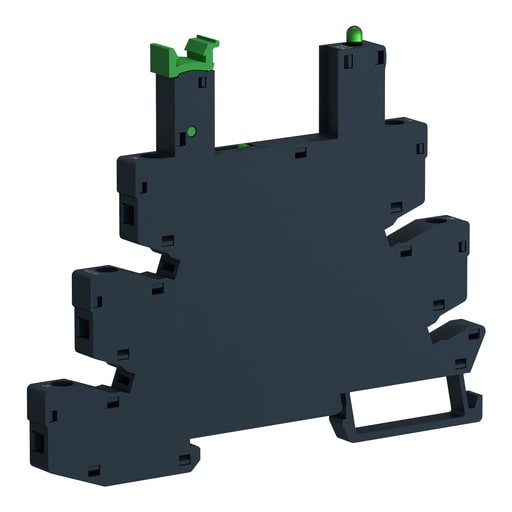

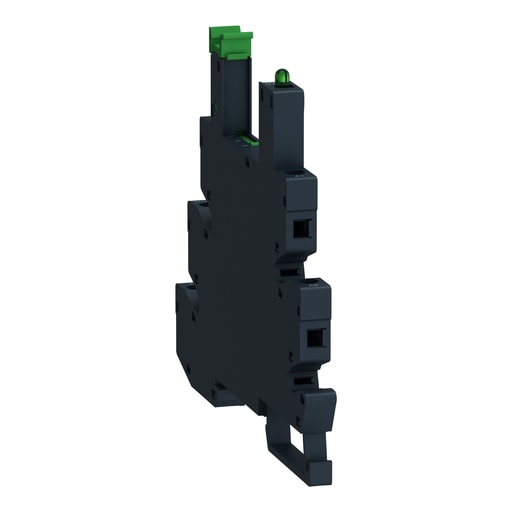

Square-D / Schneider - SQD SSLZVA1 socket equipped with LE

Essential specifications

12-Digit UPC - 606480580126
Applications - SOLID STATE RELAY SSL NO 24 V DC-SOLID STATE RELAY SSL NO 5 V DC
Catalog Number - SSLZVA1
Country of Origin - China
Depths - 78.6 mm

Packaging

10 ea

EAN

03606480580123

Part #

139813

Catalog #

SSLZVA1

Commercial reference

SSLZVA1

12-Digit UPC:

606480580126

Applications:

SOLID STATE RELAY SSL NO 24 V DC-SOLID STATE RELAY SSL NO 5 V DC

Catalog Number:

SSLZVA1

Country of Origin:

China

Depths:

78.6 mm

ERP_productname:

SQD SSLZVA1 SSL1 RELAY SCREW SOCKET, 5-24VDC INPUT

Family Brand Name:

Schneider Electric

Heights:

101 mm

Size:

3.09 in

Sub Brand:

SSLZ

Tc Connection:

SCREW CLAMP TERMINALS, 1 X 0.2...1 X 2.5 MMA. AWG 24...AWG 14) SOLID WITHOUT CABLE END-SCREW CLAMP TERMINALS, 1 X 0.2...1 X 2.5 MMA. AWG 24...AWG 14) FLEXIBLE WITH CABLE END

Type:

Socket for SSL1

Voltage:

250 Volt

Widths:

6.2 mm

SoneparProductId:

SKU_US_73550147

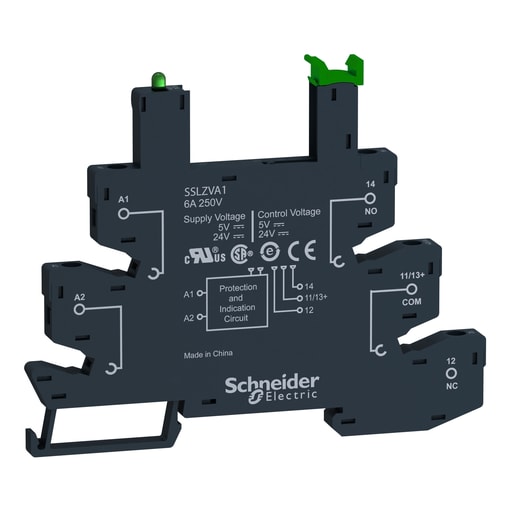

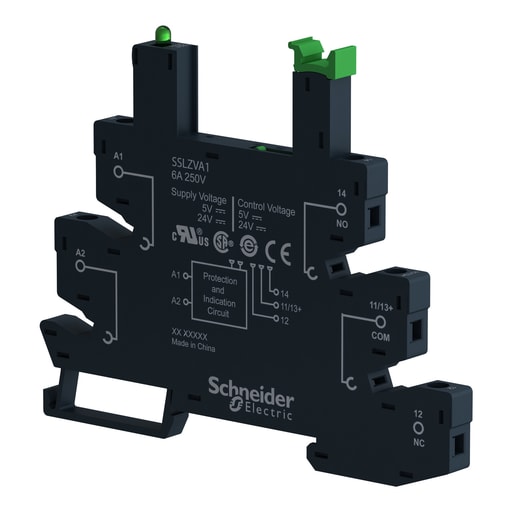

This Harmony SSL socket for solid state slim interfacing relay has screw clamp terminals and a rated voltage of 5V DC. It also offers clear circuit labelling on the sides to facilitate installation and maintenance. It features a visual indicator LED for a simpler troubleshooting and commissioning. Its clear schematic on the side of the socket enables easier wiring and maintenance. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 Prop 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Cross Sell Products: SSL1D03BD; SSL1A12BD; SSL1D101BDPV
