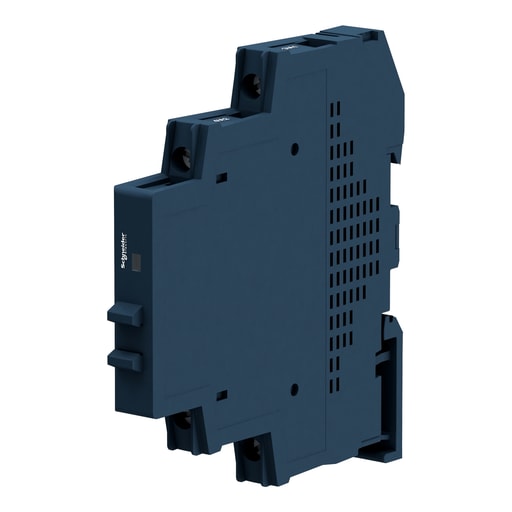

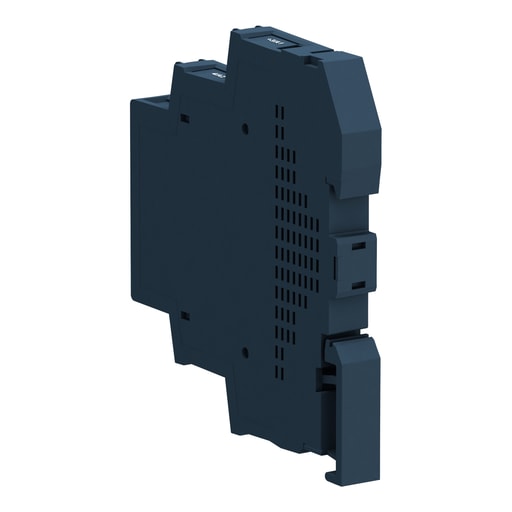

Square-D / Schneider - SQD SSM1A16F7 single phase relay, H

Essential specifications

12-Digit UPC - 606480579373
Amperage - 6 Amp
Applications - 0.16 HP 40 A.C 240 V AC
Catalog Number - SSM1A16F7
Country of Origin - USA

Packaging

1 ea

EAN

03606480579370

Part #

112421

Catalog #

SSM1A16F7

Commercial reference

SSM1A16F7

12-Digit UPC:

606480579373

Amperage:

6 Amp

Applications:

0.16 HP 40 A.C 240 V AC

Catalog Number:

SSM1A16F7

Country of Origin:

USA

Depths:

83.7 mm

ERP_productname:

SQD SSM1A16F7 SSR 1 CHANNEL, 6A@24-280VAC ZC, 90-140VAC

Family Brand Name:

Schneider Electric

Heights:

90.3 mm

Number of Phases:

1 Phase

Output Voltage:

24-280 V

Size:

3.30 in

Sub Brand:

SSM

Tc Connection:

SCREW TERMINALS 1 X 0.3...1 X 1.5 MMA., AWG 22...AWG 16) INPUT-SCREW TERMINALS 1 X 0.3...1 X 2.5 MMA., AWG 22...AWG 14) OUTPUT

Type:

Solid state relay up to 10 A

Widths:

11 mm

SoneparProductId:

SKU_US_29763568

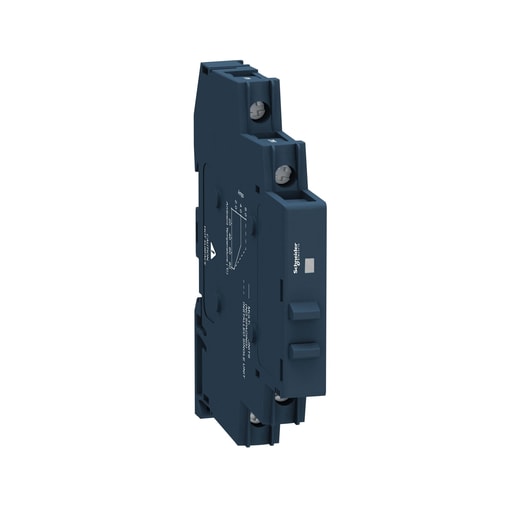

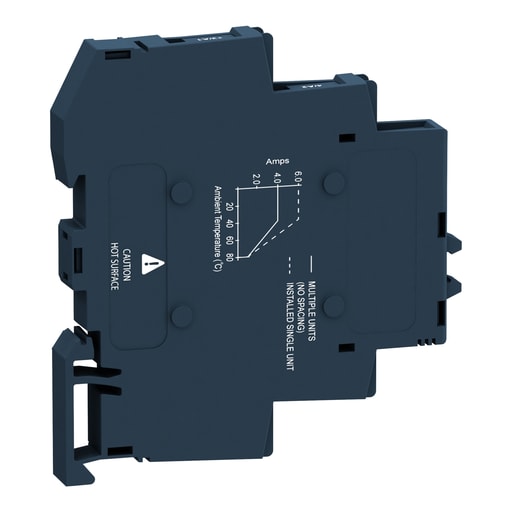

This Harmony SSM solid state modular DIN rail single-phase relay is rated 6A, is controlled with a 90V to 140V AC input, has a rated load voltage of 24V to 280V AC with zero voltage switching, ideal for resistive loads. It also has a visual indicator showing the status of its input. Built-in heatsink for maximum performance and less spare parts to manage. It is also silent and reliable thanks to the absence of moving contacts. Its clear schematic on the side of the socket enables easier wiring and maintenance. 0 0 0 0 0 0 0 0 0 0 0 Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Cross Sell Products: SSM1D26BD; SSM1A16BD
