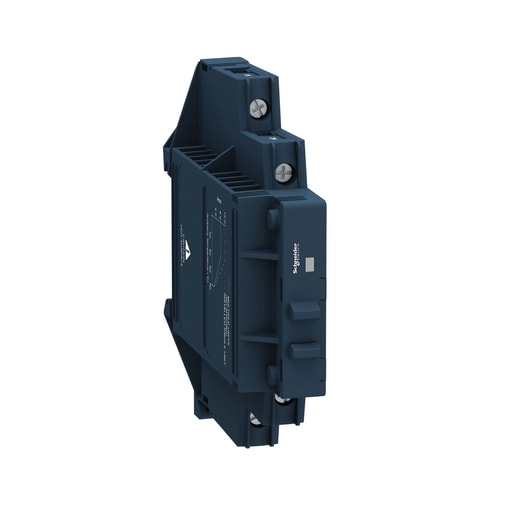

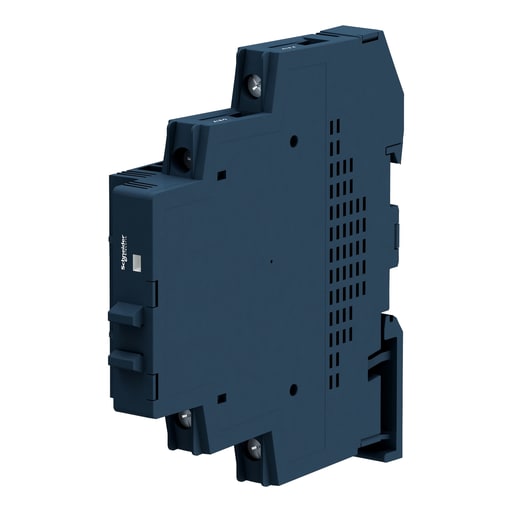

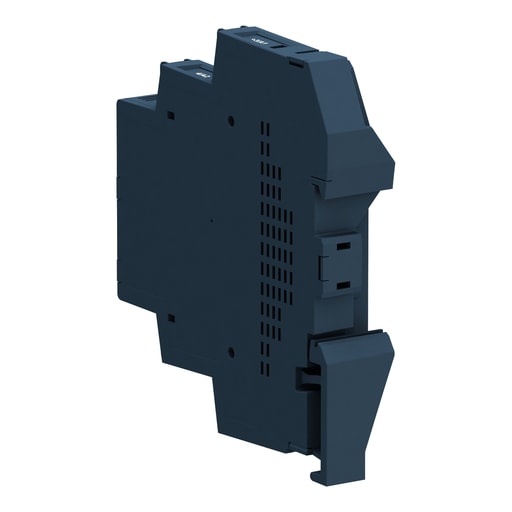

Square-D / Schneider - SQD SSM1A312BD single phase relay,

Essential specifications

12-Digit UPC - 606480579526
Amperage - 12 Amp
Applications - 0.33 HP 40 A.C 240 V AC
Catalog Number - SSM1A312BD
Country of Origin - Mexico

Packaging

1 ea

EAN

03606480579523

Part #

115285

Catalog #

SSM1A312BD

Commercial reference

SSM1A312BD

12-Digit UPC:

606480579526

Amperage:

12 Amp

Applications:

0.33 HP 40 A.C 240 V AC

Catalog Number:

SSM1A312BD

Country of Origin:

Mexico

Depths:

83.7 mm

ERP_productname:

SQD SSM1A312BD SSR 1 CHANNEL, 12A@48-600VAC ZC, 4-32VDC

Family Brand Name:

Schneider Electric

Heights:

90.3 mm

Number of Phases:

1 Phase

Output Voltage:

48-600 V

Size:

3.30 in

Sub Brand:

SSM

Tc Connection:

SCREW TERMINALS 1 X 0.3...1 X 1.5 MMA., AWG 22...AWG 16) INPUT-SCREW TERMINALS 1 X 0.3...1 X 2.5 MMA., AWG 22...AWG 14) OUTPUT

Type:

Solid state relay up to 20 A

Widths:

18 mm

SoneparProductId:

SKU_US_126088035

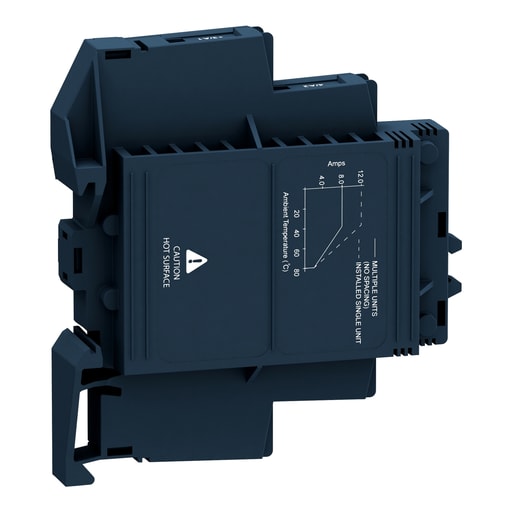

This Harmony SSM solid state modular DIN rail single-phase relay is rated 12A, is controlled with a 4V to 32V DC input, has a rated load voltage of 48V to 600V AC with zero voltage switching, ideal for resistive loads. It also has a visual indicator showing the status of its input. Built-in heatsink for maximum performance and less spare parts to manage. It is also silent and reliable thanks to the absence of moving contacts. Its clear schematic on the side of the socket enables easier wiring and maintenance. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Cross Sell Products: SSM1A312BDR; SSM1D212BD; SSM1A112BD
