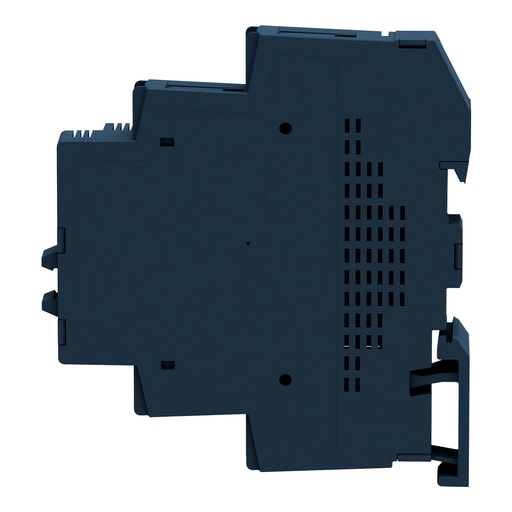

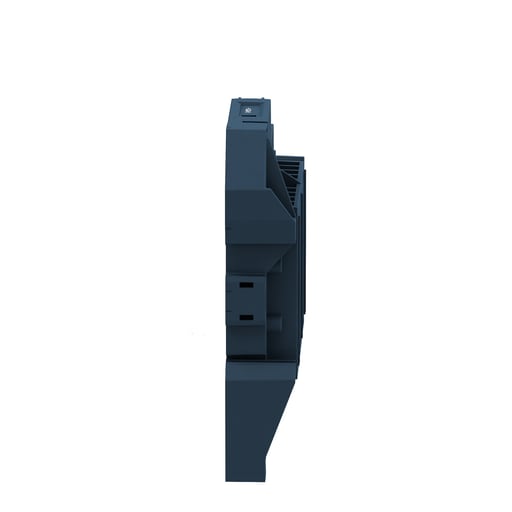

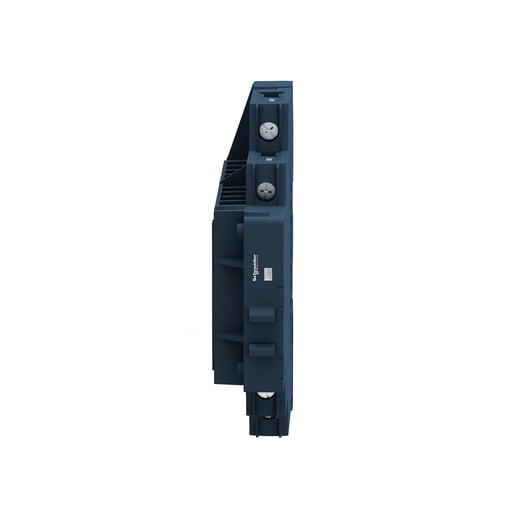

Square-D / Schneider - SQD SSM1D212BD single phase relay,

Essential specifications

12-Digit UPC - 606480579465
Amperage - 12 Amp
Applications - ZELIO RELAY
Catalog Number - SSM1D212BD
Country of Origin - Mexico

Packaging

1 ea

EAN

03606480579462

Part #

105852

Catalog #

SSM1D212BD

Commercial reference

SSM1D212BD

12-Digit UPC:

606480579465

Amperage:

12 Amp

Applications:

ZELIO RELAY

Catalog Number:

SSM1D212BD

Country of Origin:

Mexico

Depths:

83.7 mm

ERP_productname:

SQD SSM1D212BD SSR 1 CHANNEL, 12A@1-60VDC, 4-32VDC

Family Brand Name:

Schneider Electric

Heights:

90.3 mm

Number of Phases:

1 Phase

Output Voltage:

1-60 V

Size:

3.30 in

Sub Brand:

SSM

Tc Connection:

SCREW TERMINALS 1 X 0.3...1 X 1.5 MMA., AWG 22...AWG 16) INPUT-SCREW TERMINALS 1 X 0.3...1 X 2.5 MMA., AWG 22...AWG 14) OUTPUT

Type:

Solid state relay up to 20 A

Widths:

18 mm

SoneparProductId:

SKU_US_192548705

This Harmony SSM solid state modular DIN rail single-phase relay is rated 12A, is controlled with a 4V to 32V DC input, has a rated load voltage of 1V to 60V DC with DC switching. It also has a visual indicator showing the status of its input. Built-in heatsink for maximum performance and less spare parts to manage. It is also silent and reliable thanks to the absence of moving contacts. Its clear schematic on the side of the socket enables easier wiring and maintenance. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Cross Sell Products: SSM1D312BD; SSM1A312BD; SSM1A112BD
