Square-D / Schneider - SQD SSP04EMA16SD Surge protection d

CopyCopy
Square-D / Schneider - SQD SSP04EMA16SD Surge protection d

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901076735

  • Catalog Number - SSP04EMA16SD

  • Country of Origin - Mexico

  • Current - 150 Amp

  • Depths - 238.8 mm

Packaging

  • 1 ea

EAN

00785901076735

Part #

166184

Catalog #

SSP04EMA16SD

Commercial reference

SSP04EMA16SD

12-Digit UPC:

785901076735

Catalog Number:

SSP04EMA16SD

Country of Origin:

Mexico

Current:

150 Amp

Depths:

238.8 mm

ERP_productname:

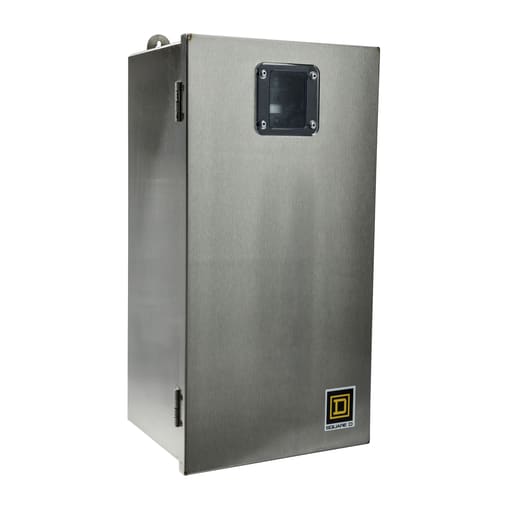

SQD SSP04EMA16SD SURGE PROTECTION DEVICE, SURGELOGIC, 160KA, 480Y/277 VAC, 3 PHASE, 4 WIRE, NEMA 4X, DISCONNECT SWITCH

Enclosure:

4X

Enclosure Material:

Stainless Steel

Family Brand Name:

Square D

Heights:

575.8 mm

Length:

483 mm

Mounting Type:

Surface

NEMA Size:

4X

Number of Phases:

3 Phase

Number of Poles:

3 Pole

Size:

NEMA 4

Voltage:

277 Volt

Widths:

297.2 mm

SoneparProductId:

SKU_US_130537896

Surgelogic™ Type EMA systems are external surgical protection devices with a focus on individual phase modules. With a surge current rating of 160,000 Amps, enhanced EMI/RFI filtering of -54 dB at 100 kHz is possible to increase performance at distribution and branch panel applications. Being modular in design, this unit is able to achieve superior surge suppression at every level of the electrical distribution system. This unit provides surge suppression from service entrance panels to point-of-use equipment. This product is UL and CSA certified. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: TVS12RMU
