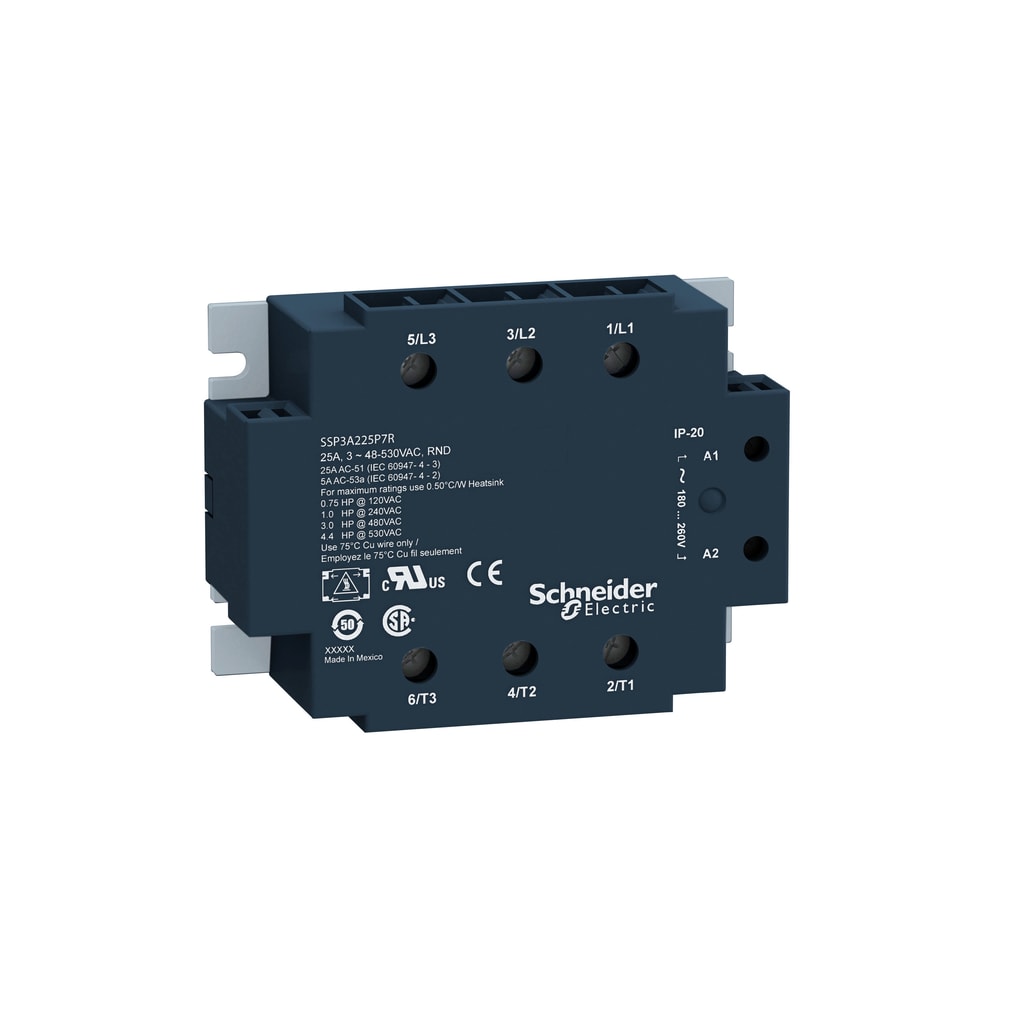

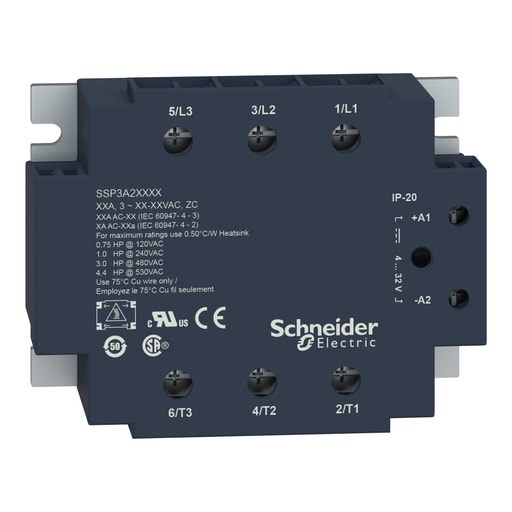

Square-D / Schneider - SQD SSP3A225BD three phase relay, H
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 606480579823
Amperage - 25 Amp
Applications - 0.56 KW 40-40 A.C 120 V AC-0.74 KW 40-40 A.C 240 V AC-2.22 KW 40-40 A.C 480 V AC-3.24 KW 40-40 A.C 530 V AC,0.75 HP 40 A.C 120 V AC-1 HP 40 A.C 240 V AC-3 HP 40 A.C 480 V AC-4.4 HP 40 A.C 530 V AC
Catalog Number - SSP3A225BD
Country of Origin - Mexico
Packaging
1 ea
EAN
03606480579820
Part #
107878
Catalog #
SSP3A225BD
Commercial reference
SSP3A225BD
12-Digit UPC:
606480579823
Amperage:
25 Amp
Applications:
0.56 KW 40-40 A.C 120 V AC-0.74 KW 40-40 A.C 240 V AC-2.22 KW 40-40 A.C 480 V AC-3.24 KW 40-40 A.C 530 V AC,0.75 HP 40 A.C 120 V AC-1 HP 40 A.C 240 V AC-3 HP 40 A.C 480 V AC-4.4 HP 40 A.C 530 V AC
Catalog Number:
SSP3A225BD
Country of Origin:
Mexico
Depths:
35.4 mm
ERP_productname:
SQD SSP3A225BD SSR 3 PHASE 25A@48-530VAC ZC, 4-32VDC
Family Brand Name:
Schneider Electric
Heights:
79.7 mm
Number of Phases:
3 Phase
Output Voltage:
48-530 V
Size:
1.39 in
Sub Brand:
SSP
Tc Connection:
SCREW TERMINALS 1 X 0.2...1 X 2.5 MMA., AWG 24...AWG 14) INPUT-SCREW TERMINALS 1 X 1.5...1 X 10 MMA., AWG 16...AWG 8) OUTPUT
Type:
Solid state relay
Widths:
101.3 mm
SoneparProductId:
SKU_US_75356417
