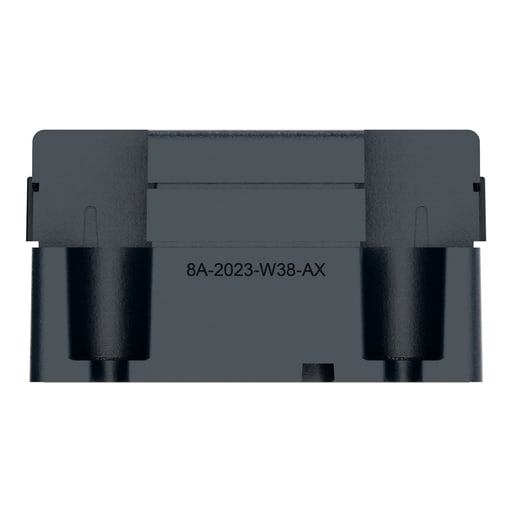

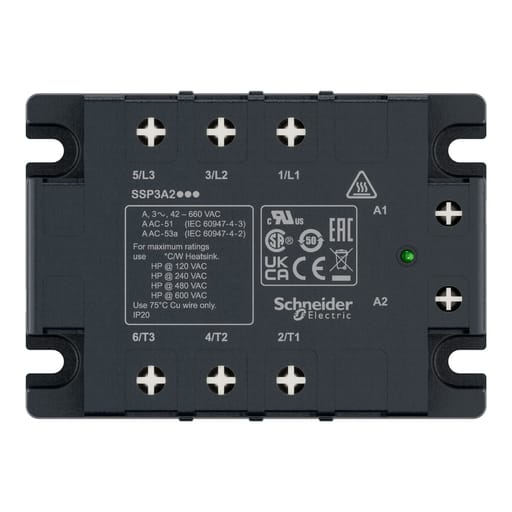

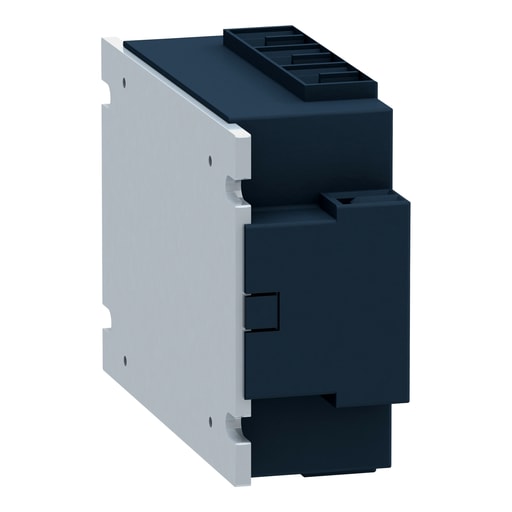

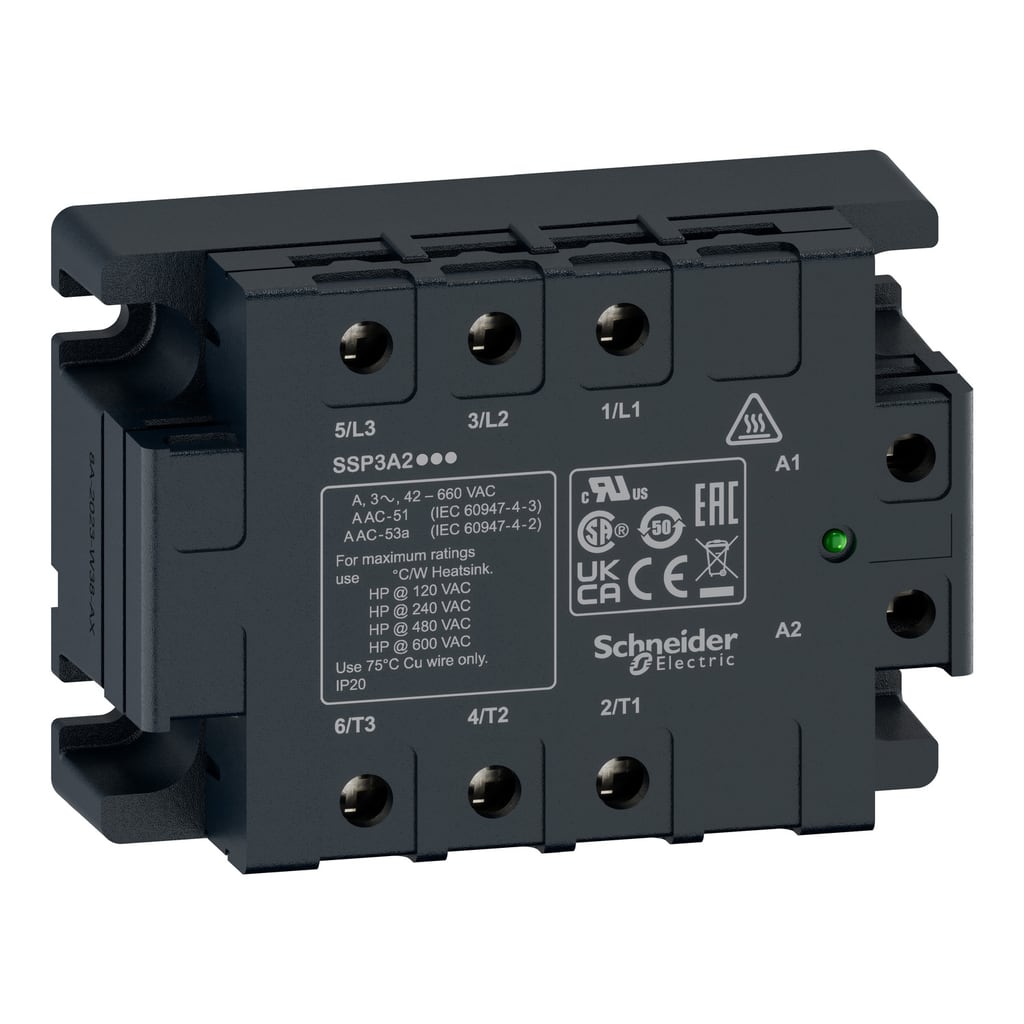

Square-D / Schneider - SQD SSP3A250BDRT Solid state relay,
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 606480580102
Amperage - 50 Amp
Applications - 1.11 KW 40-40 A.C 120 V AC-2.22 KW 40-40 A.C 240 V AC-5.55 KW 40-40 A.C 480 V AC-6.47 KW 40-40 A.C 530 V AC,1.5 HP 40 A.C 120 V AC-3 HP 40 A.C 240 V AC-7.5 HP 40 A.C 480 V AC-8.8 HP 40 A.C 530 V AC
Catalog Number - SSP3A250BDRT
Country of Origin - USA
Packaging
1 ea
EAN
03606480580109
Part #
409770
Catalog #
SSP3A250BDRT
Commercial reference
SSP3A250BDRT
12-Digit UPC:
606480580102
Amperage:
50 Amp
Applications:
1.11 KW 40-40 A.C 120 V AC-2.22 KW 40-40 A.C 240 V AC-5.55 KW 40-40 A.C 480 V AC-6.47 KW 40-40 A.C 530 V AC,1.5 HP 40 A.C 120 V AC-3 HP 40 A.C 240 V AC-7.5 HP 40 A.C 480 V AC-8.8 HP 40 A.C 530 V AC
Catalog Number:
SSP3A250BDRT
Country of Origin:
USA
Depths:
41 mm
ERP_productname:
SQD SSP3A250BDRT SSR 3PHASE
Family Brand Name:
Schneider Electric
Heights:
74.6 mm
Number of Phases:
3 Phase
Output Voltage:
...660 V
Size:
1.39 in
Sub Brand:
SSP
Tc Connection:
SCREW TERMINALS 1 X 0.2...1 X 2.5 MMA., AWG 24...AWG 14) INPUT-SCREW TERMINALS 1 X 1.5...1 X 10 MMA., AWG 16...AWG 8) OUTPUT
Type:
Solid state relay
Widths:
104 mm
SoneparProductId:
SKU_US_28992501
