Square-D / Schneider - SQD SU3040D400CB All in one, Homeli

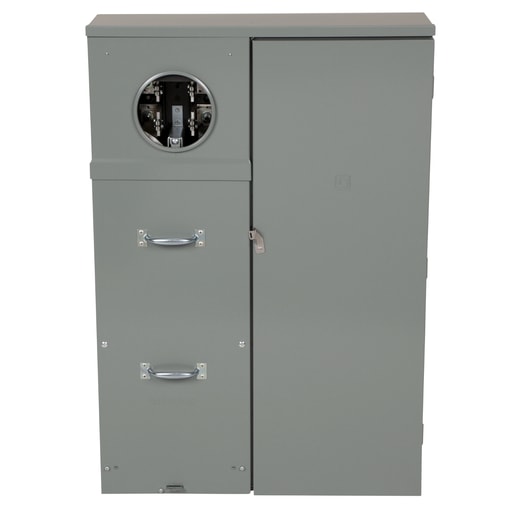

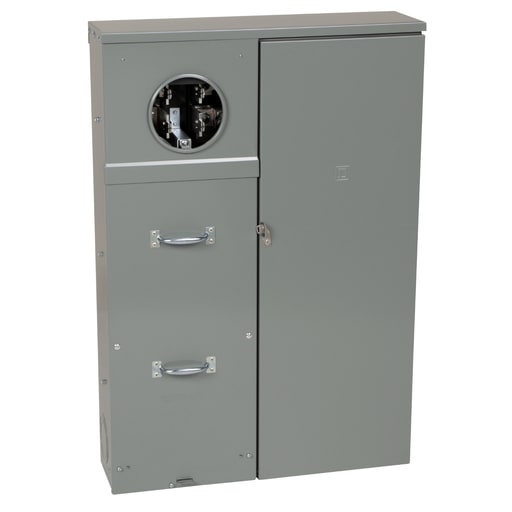

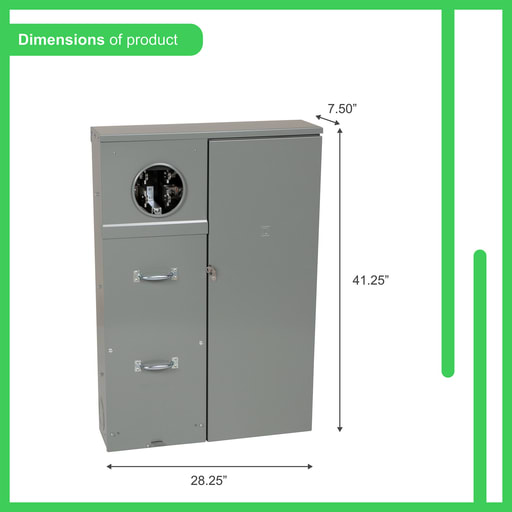

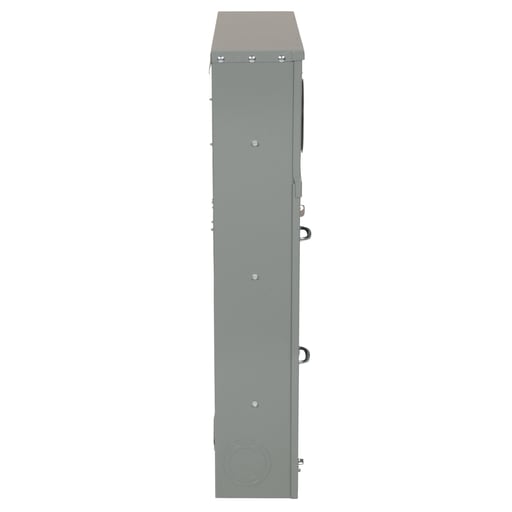

Homeline All In One combination service entrance devices are available with ring or ringless type meter socket designs. Devices have factory installed service disconnect(s) in most cases. Supplied with 100% branch neutrals, all unused terminals may be used for equipment grounding wires. These Homeline combination service entrance devices meet the Federal Specification W-P-115c as Type 1, Class 2 specifications. This Homeline All In One combination service entrance device has a ringed meter socket with a Class 320 Manual bypass. The socket has 4 jaws. This unit can be feed from an underground service. The service disconnect has a QDL22200 with a maximum rating of 200 A. Device has a 25 kA short circuit current rating. Load center has 30 spaces which will accept up to 10 tandem Homeline circuit breakers. This unit has a NEMA 3R surface mount enclosure that is 41.25 inches tall, 28.25 inches wide and 7.50 inches deep. The line side has two studs. The service ground lug will accept 4 AWG to 250 kcmil copper or aluminum wire. This Homeline All In One combination service entrance unit is UL Listed. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: 5J; FK400; HOM2175SB; QDL22200; HEPD25; HOM2100; OCK400; HEPD50; HOM250; CMELK4; HEPD80; A200L; A250L; A300L
