Square-D / Schneider - SQD T02DN23G7 NEMA Contactor, TeSys

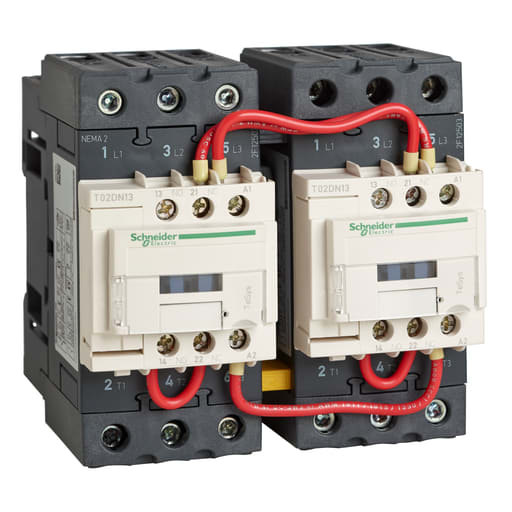

TeSys N contactors and starters conform to NEMA ICS2 standards. The NEMA size is printed directly on the face of the contactor. This NEMA size 2 reversing contactor consists of contactors that are mechanically and electrically interlocked. This 3 pole reversing contactor mounts on 35mm DIN rail and has a 45 amperage continuous current rating. This contactor has 3 HP at 115 VAC and 7.5 HP at 230 VAC single phase ratings. The contactor also has ratings of 10 HP at 200, 15 HP at 230 VAC and 25 HP at 460 and 575 VAC poly phase. The reversing contactor is wired for common control with a 120 VAC 50/60 Hz replaceable coil. Contactor has 1 normally open and 1 normally closed auxiliary contact. This contactor is not in an enclosure. This contactor is 5.47 inches tall, 4.67 inches wide and 4.72 inches deep. It weighs 4.56 lbs. The screw clamp terminals will accept power wires from 16 AWG to 4 AWG and control wires from 16 AWG to 12 AWG. This TeSys N contactor is UL listed and CSA Certified. Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
