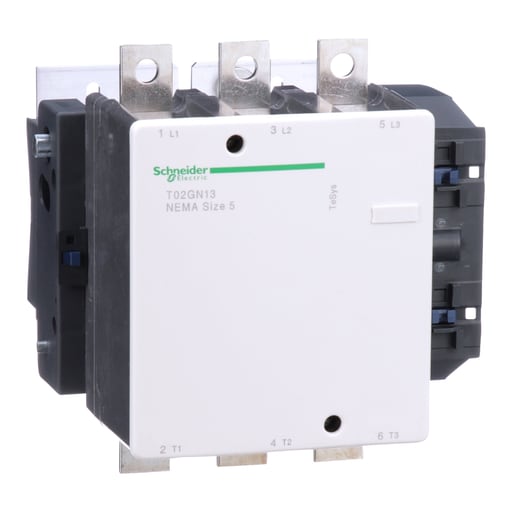

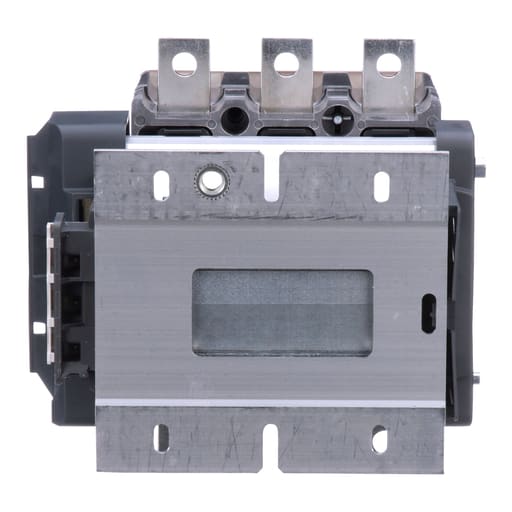

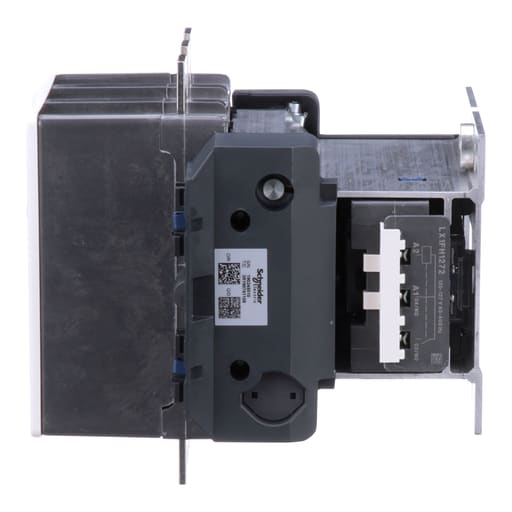

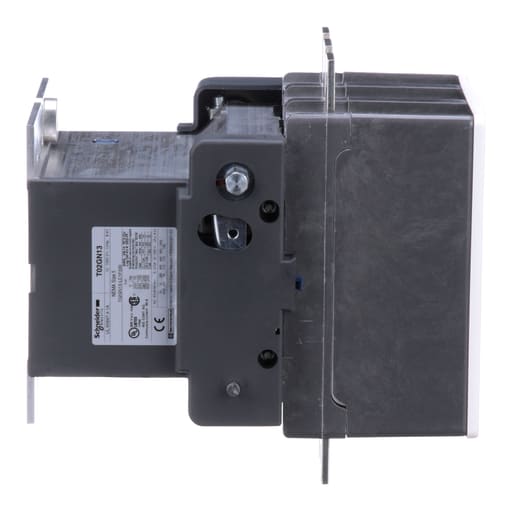

Square-D / Schneider - SQD T02GN13G7 NEMA Contactor, TeSys

TeSys N contactors and starters conform to NEMA ICS2 standards. The NEMA size is printed directly on the face of the contactor. This 3 pole NEMA size 5 nonreversing contactor mounts on 35mm DIN rail and has a 270 amperage continuous current rating. The contactor has ratings of 75 HP at 200, 100 HP at 230 VAC and 200 HP at 460 and 575 VAC poly phase. To maximize convenience and to reduce inventory the TeSys N contactor uses the common TeSys accessories. Contactor has 1 normally open auxiliary contact. This contactor is not in an enclosure. This contactor is 8.11 inches tall, 8.39 inches wide and 8.71 inches deep. It weighs 20.52 lbs. The screw clamp terminals will accept control wires from 16 AWG to 12 AWG. This TeSys N contactor is UL listed and CSA Certified. Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: LADN11; LADN20; LADN02; LADN22; LADN13; LADN40; LADN04; LADN31; LAD8N11; LAD8N20
