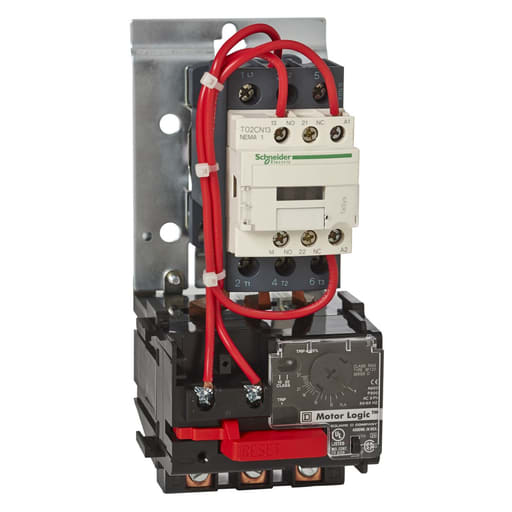

Square-D / Schneider - SQD T36BN13G7 Motor Starter, TeSys

Essential specifications

12-Digit UPC - 785901990284
Catalog Number - T36BN13G7
Coil Voltage - 120 V AC,600 V AC
Country of Origin - France
Current - 18 Amp

Packaging

1 ea

EAN

00785901990284

Part #

212309

Catalog #

T36BN13G7

Commercial reference

T36BN13G7

12-Digit UPC:

785901990284

Catalog Number:

T36BN13G7

Coil Voltage:

120 V AC,600 V AC

Country of Origin:

France

Current:

18 Amp

ERP_productname:

SQD T36BN13G7 MOTOR STARTER, TESYS NEMA, NONREVERSING, SIZE 0, 18A, 3 POLE, HP RATED, MOTOR LOGIC SSOLR, 120 VAC 60 HZ COIL, OPEN

Enclosure Type:

Not rated (open device)

Family Brand Name:

Schneider Electric

NEMA Size:

Number of Phases:

3 Phase

Number of Poles:

3 Pole

Size:

Sub Brand:

TESYS N

Tc Connection:

SCREW CLAMP TERMINALS

Type:

Non reversing;Starter

SoneparProductId:

SKU_US_83994732

TeSys N contactors and starters conform to NEMA ICS2 standards. The NEMA size is printed directly on the face of the contactor. The 3 pole NEMA size 0 motor starter has an 18 amperage continuous current rating. It also has ratings of 3 HP at 200 to 230 Vac and 5 HP at 460 and 575 VAC poly phase. This motor starter has a Motor Logic solid state overload relay with a Class 10/20 rating. The overload is adjustable from 6 to 18 amperes. The starter has a 120 VAC replaceable coil with common control. Starter has 1 normally open and 1 normally closed auxiliary contact. This starter is not in an enclosure. Motor starter is UL listed and CSA Certified. Prop 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Compatible Products: LADN22; LR9D02; LADN13; LR9D08; LADN40; LR9D32; LADN04; LADN31; LADC22; LADN11; LADN20; LADN02; LADN10; LADN01; LAD8N11; LAD8N20; LA1DX20; LA1DZ40; LA1DZ31; LA1DY20; LADT4; LADR4
