Square-D / Schneider - SQD TDR782XBXA-24D Time delay relay

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901148562

  • Catalog Number - TDR782XBXA24D

  • Country of Origin - Indonesia

  • Depths - 27 mm

  • ERP_productname - SQD TDR782XBXA24D TIME DELAY RELAY DPDT 5A 24 VDC

Packaging

  • 1 ea

EAN

03606480283000

Part #

110997

Catalog #

TDR782XBXA24D

Commercial reference

TDR782XBXA24D

12-Digit UPC:

785901148562

Catalog Number:

TDR782XBXA24D

Country of Origin:

Indonesia

Depths:

27 mm

ERP_productname:

SQD TDR782XBXA24D TIME DELAY RELAY DPDT 5A 24 VDC

Family Brand Name:

Schneider Electric

Heights:

59.4 mm

Widths:

21 mm

SoneparProductId:

SKU_US_127251136

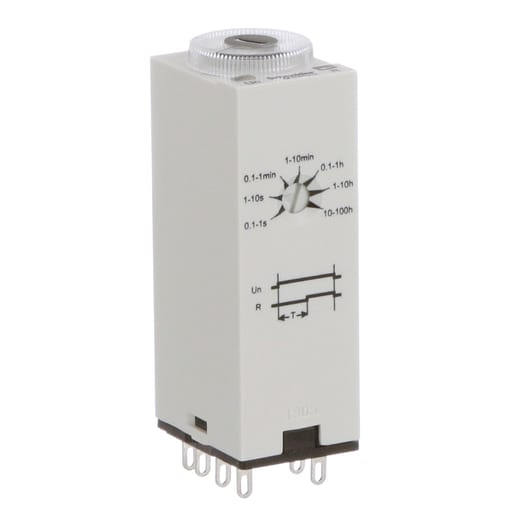

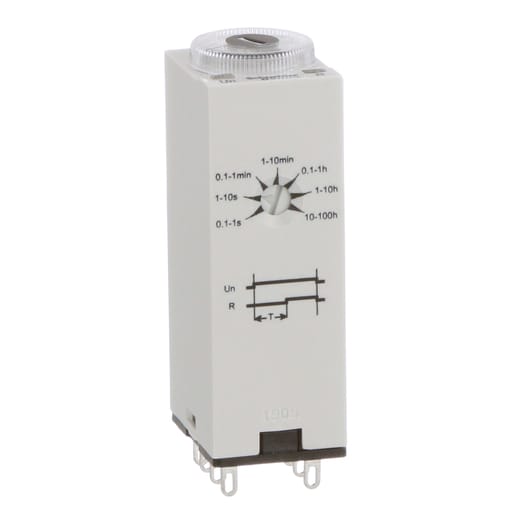

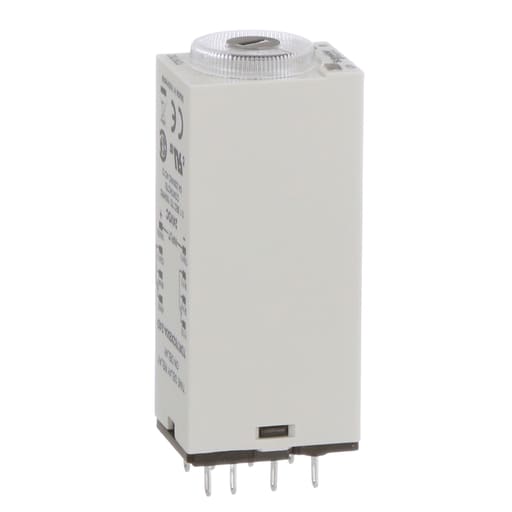

The SE Relays TDR782 series, miniature time delay relay offers 7 different time ranges with ultra-wide timing range of 0.1 ms to 100 hr with time adjustment dial for fine tune of time settings. Input voltage of 24VDC with contact ratings of 5A makes this single-function, single-voltage relay ideal for specific applications. Contact configaration is performed by silver alloy contacts as DPDT. Socket compatible mounting option allows to set relay directly to 35-mm DIN-rail or panel and makes it ideal for tight spaces and allows easy installation. 2 LED status indicators shows input indication in green LED and output indication in amber steady on LED light as energized relay status. IEC and NEMA terminal numbering allows numbering compatibility. Prop 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: 70-782EL8-1; 70-782EL14-1; 70-782D14-1; 70-461-1; 70-378-1; 70-379-1; 16-TDR782SC; 16-700DIN; 16-DCLIP-1
