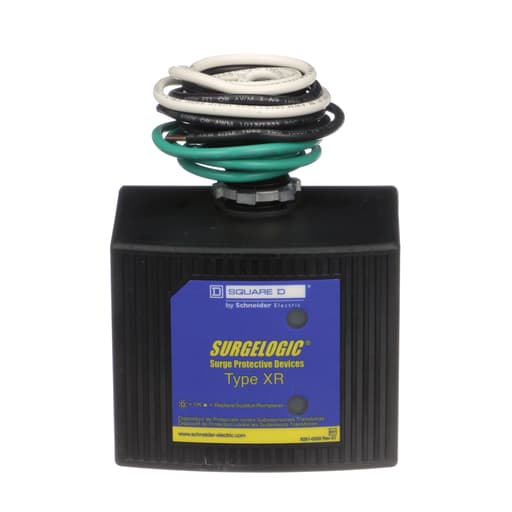

Square-D / Schneider - SQD TVS120XR80S Surge protection de

Essential specifications

12-Digit UPC - 785901685661
Applications - Side
Catalog Number - TVS120XR80S
Country of Origin - USA
Depths - 68 mm

Packaging

1 ea

EAN

00785901685661

Part #

204859

Catalog #

TVS120XR80S

Commercial reference

TVS120XR80S

12-Digit UPC:

785901685661

Applications:

Side

Catalog Number:

TVS120XR80S

Country of Origin:

USA

Depths:

68 mm

ERP_productname:

SQD TVS120XR80S SPD 120/240V 80KA 3W+G

Enclosure:

Enclosure Material:

Plastic

Family Brand Name:

Square D

Heights:

91 mm

Mounting Type:

Flush Fixing Kit

NEMA Size:

Number of Phases:

1 Phase

Size:

24 in

Sub Brand:

Tc Connection:

Wire phase and neutral AWG 12 copper;Wire ground AWG 12 copper

Type:

Surge protection device;3-wire

Voltage:

120/240 Volt

Widths:

76 mm

SoneparProductId:

SKU_US_31729479

Square D™ load center surge protective devices, TVS120XR80S, are easy to install plug-in units that install as quickly as a standard circuit breaker. The surge suppressors use two pole spaces in a QO™ or Homeline™ load center, or NQ panelboard. US and Canadian UL® Listed as Type 2 SPD to the UL 1449 standard. Complies with requirements of NEC® Article 285, CSA 233.1-87, and CSA C22.2 No. 8- M1986 as appropriate.
