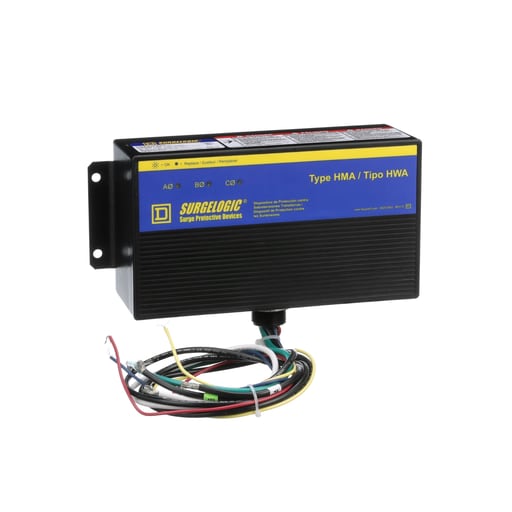

Square-D / Schneider - SQD TVS2HWA10X Surge protection dev

Essential specifications

12-Digit UPC - 785901946236
Applications - Bottom of enclosure
Catalog Number - TVS2HWA10X
Country of Origin - Mexico
Depths - 79 mm

Packaging

1 ea

EAN

00785901946236

Part #

138047

Catalog #

TVS2HWA10X

Commercial reference

TVS2HWA10X

12-Digit UPC:

785901946236

Applications:

Bottom of enclosure

Catalog Number:

TVS2HWA10X

Country of Origin:

Mexico

Depths:

79 mm

ERP_productname:

SQD TVS2HWA10X HWA SPD, 208Y/120V 3 PH, 4 WIRE, 100KA

Enclosure:

Enclosure Material:

Plastic

Family Brand Name:

Square D

Heights:

122 mm

Length:

33.6 Inch

Material:

Non-Metal

Mounting Type:

Flush Fixing Kit,Surface

NEMA Size:

Number of Phases:

3 Phase

Number of Poles:

2 Pole

Size:

33.6 in

Sub Brand:

HWA

Tc Connection:

Wire phase and neutral AWG 10 copper;Wire ground AWG 10 copper;Wire dry contacts AWG 22 copper

Type:

Surge protection device;4-wire

Voltage:

120 Volt

Widths:

219 mm

SoneparProductId:

SKU_US_29639626

The HWA Series are surge suppressors and noise filters in a compact package. HWA surge protective devices are nipple mounted, parallel connected suppressors with different voltage configurations, including delta. TVS2HWA10X is three phase, four wire, 280Y/120VAC with an 100kA surge current. The surge suppressors use three pole spaces in a QO or Homeline load center, or NQ panelboard. The devices are NEMA 4X rated, allowing either indoor or outdoor installation. The devices comply with UL and CSA standards. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
