Square-D / Schneider - SQD UT5R2392TU Horizontal meter soc

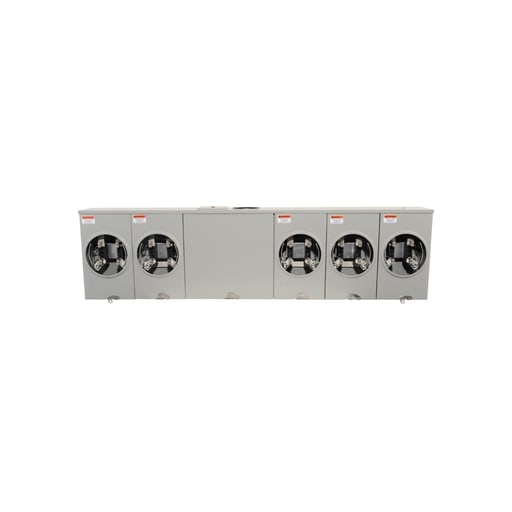

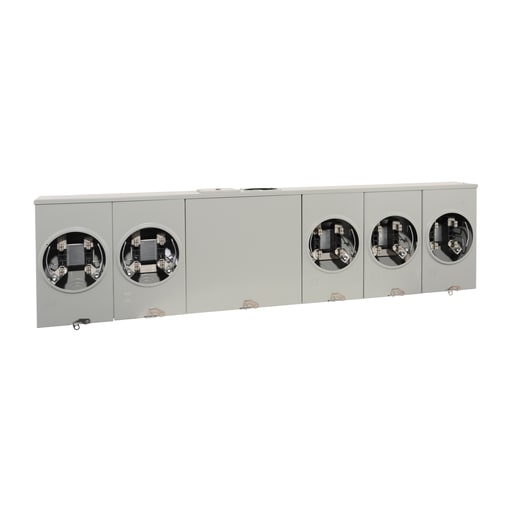

UT horizontal ganged meter sockets are for single phase systems up to 600 VAC. These main lug units can be from 2 through 6 meter positions. Units can be with or with a horn or lever bypass and be fed from the end or the center. This horizontal ganged meter socket has five meter positions without bypass. Each socket position has a 4 jaw socket without jaw release. The main is rated at 500 A. The branches have a 200 A rating. This unit can be feed from an overhead or underground service. This unit has a NEMA 3R surface mounting enclosure that is 14.12 inches tall, 54.75 inches wide and 5.38 inches deep. The main lugs will accept one 1/0 AWG to 500 kcmil or with two 1/0 AWG to 350 kcmil copper or aluminum wire. The branch lugs will accept 8 AWG to 250 kcmil copper or aluminum wire. This horizontal ganged meter socket device is UL Listed. Prop 65: WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer, and Toluene, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
