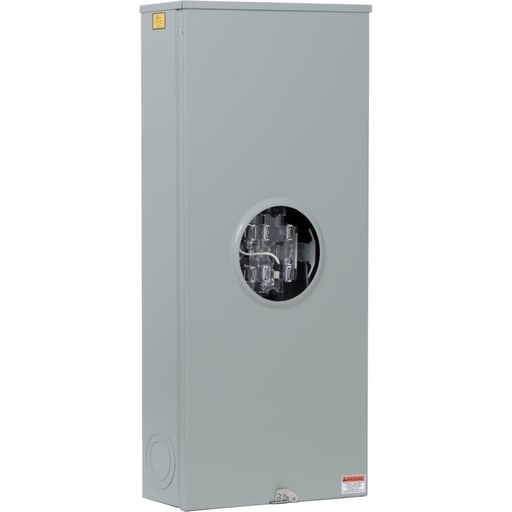

Square-D / Schneider - SQD UTH7300T Meter socket, ringless
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901627838
Amperage - 320 Amp
Catalog Number - UTH7300T
Country of Origin - USA
Depths - 5.68 Inch
Packaging
1 ea
EAN
00785901627838
Part #
211651
Catalog #
UTH7300T
Commercial reference
UTH7300T
12-Digit UPC:
785901627838
Amperage:
320 Amp
Catalog Number:
UTH7300T
Country of Origin:
USA
Depths:
5.68 Inch
ERP_productname:
SQD UTH7300T METER SOCKET, RINGLESS, 3 PHASE, 4 WIRE, 320A, 7 JAWS, 600 VAC MAX, SERIES A-L, LEVER BYPASS, JAW RELEASE
Enclosure:
3R
Enclosure Material:
Steel
Family Brand Name:
Square D
Heights:
36.62 Inch
NEMA Size:
3R
Number of Phases:
3 Phase
Size:
36.62 in
Type:
Ringless;Meter Socket
Voltage:
600 Volt
Widths:
15.00 in
SoneparProductId:
SKU_US_31934219
Square D™ individual meter sockets are power distribution panels used in single phase or 3 phase residential applications. These meter sockets are NEMA 3R enclosures that are supplied with ground lugs and top endwall hub opening. This requires the use of a bolt on hub or closing plate. This product is a ringless type with lever bypass, and overhead service feed. It also is rated at 320A with 7 jaws. Unit has 10,000 RMS Symmetrical Amperes short circuit current rating. A studs only option is available. They are UL Listed. Prop 65: WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer, and Toluene, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: A250L; A300L; A200L; A400L; ACPL; AAP; ARP00129; ARP00427; 2920910001; ARP00026
