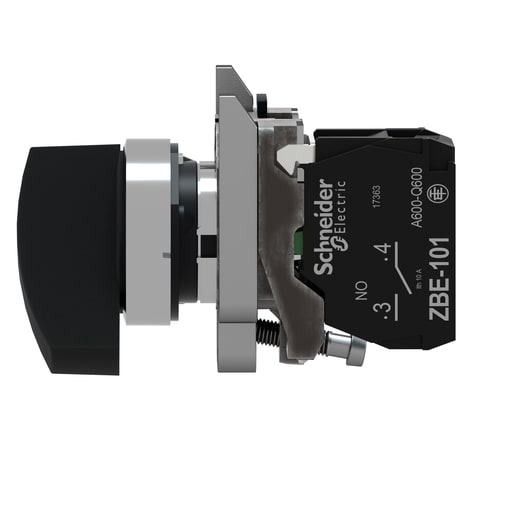

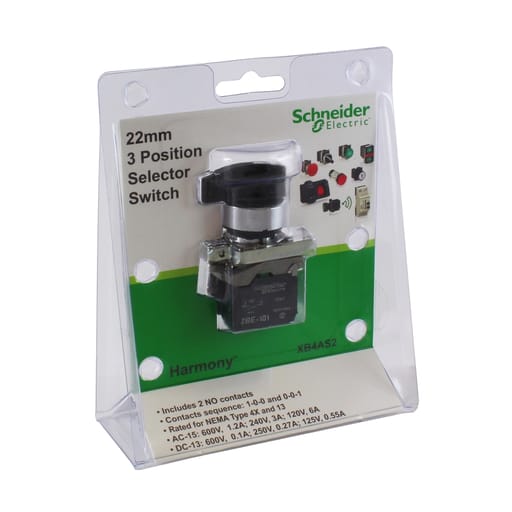

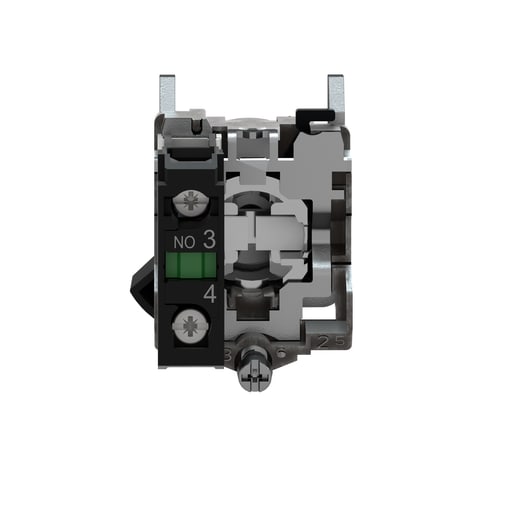

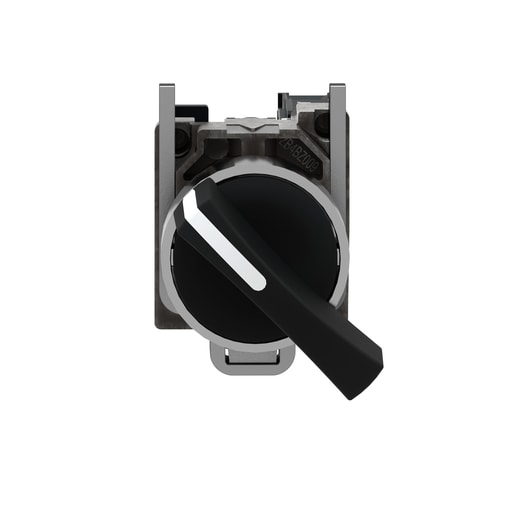

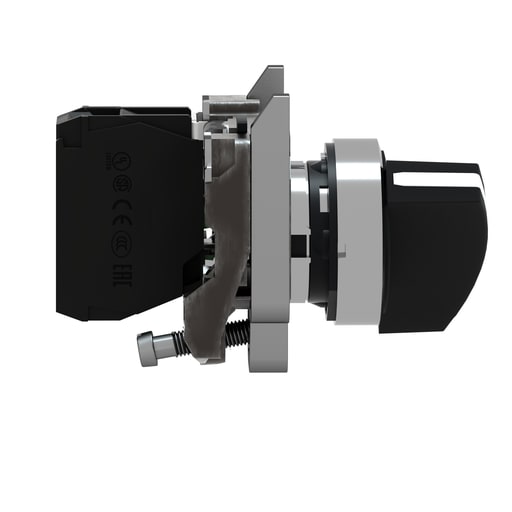

Square-D / Schneider - SQD XB4AS2 Selector switch, Harmony

Essential specifications

12-Digit UPC - 785901553922
Actuator - 2 POSITIONS 90A.,BLACK STANDARD HANDLE,STAY PUT
Amperage - 3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1
Catalog Number - XB4AS2
Color - Black

Packaging

1 ea

EAN

00785901553922

Part #

195384

Catalog #

XB4AS2

Commercial reference

XB4AS2

12-Digit UPC:

785901553922

Actuator:

2 POSITIONS 90A.,BLACK STANDARD HANDLE,STAY PUT

Amperage:

3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1

Catalog Number:

XB4AS2

Color:

Black

Country of Origin:

Mexico

Depths:

68 mm

ERP_productname:

SQD XB4AS2 22MM 3 POS SEL SW

Enclosure:

NEMA 13-NEMA 4X

Family Brand Name:

Schneider Electric

Heights:

47 mm

Size:

22 MM,30 MM,47 MM,68 MM

Sub Brand:

XB4

Tc Connection:

SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA. WITH CABLE END EN/IEC 60947-1-SCREW CLAMP TERMINALS, >= 1 X 0.22 MMA. WITHOUT CABLE END EN/IEC 60947-1

Type:

SELECTOR SWITCH

Widths:

30 mm

SoneparProductId:

SKU_US_29989014

This selector switch provides an ergonomic interface for controlling your machines Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K, making it ideal for operation in harsh environments It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections High performance International standards & certifications (Marine ABS certification, Type 1, 2, 3, 3R, 4, 4X, 12 and 13) Prop 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Cross Sell Products: XB4FD25; XB4FJ53
