Square-D / Schneider - SQD XB4BA25 Push button, metal, Har

Essential specifications

12-Digit UPC - 606480502302
Actuator - BLACK FLUSH, UNMARKED,SPRING RETURN
Amperage - 3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1
Catalog Number - XB4BA25
Color - Black

Packaging

1 ea

EAN

03606480502309

Part #

255083

Catalog #

XB4BA25

Commercial reference

XB4BA25

12-Digit UPC:

606480502302

Actuator:

BLACK FLUSH, UNMARKED,SPRING RETURN

Amperage:

3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1

Catalog Number:

XB4BA25

Color:

Black

Country of Origin:

Mexico

Depths:

52 mm

ERP_productname:

SQD XB4BA25 HARMONY XB4, PUSH BUTTON, METAL, FLUSH, BLACK, ?22, SPRING RETURN, UNMARKED, 1 NO + 1 NC

Enclosure:

NEMA 13-NEMA 4X

Family Brand Name:

Schneider Electric

Head Type:

Standard

Heights:

47 mm

Size:

2.05 in

Sub Brand:

XB4

Tc Connection:

SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA. WITH CABLE END EN/IEC 60947-1-SCREW CLAMP TERMINALS, 1 X 0.22...2 X 2.5 MMA. WITHOUT CABLE END EN/IEC 60947-1

Type:

Push-button

Widths:

30 mm

SoneparProductId:

SKU_US_31812975

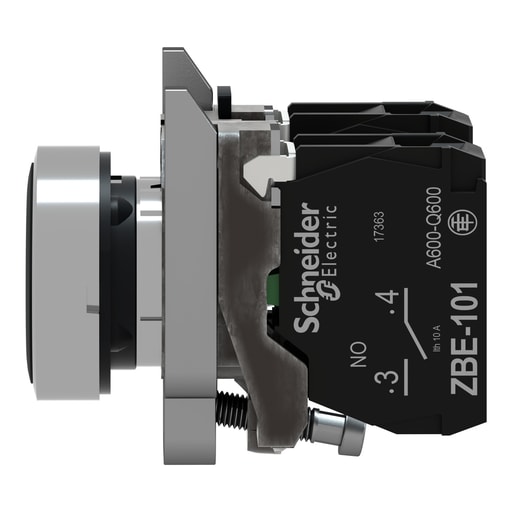

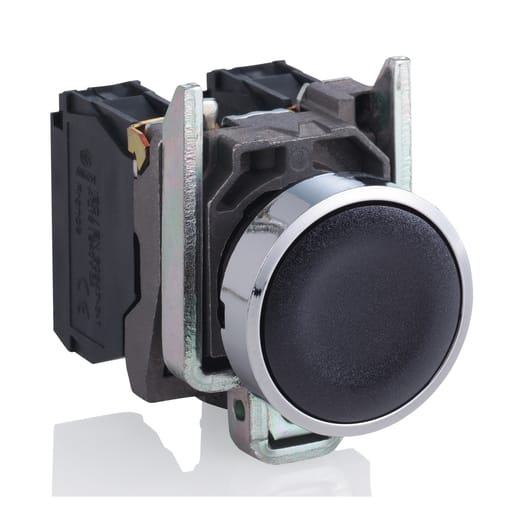

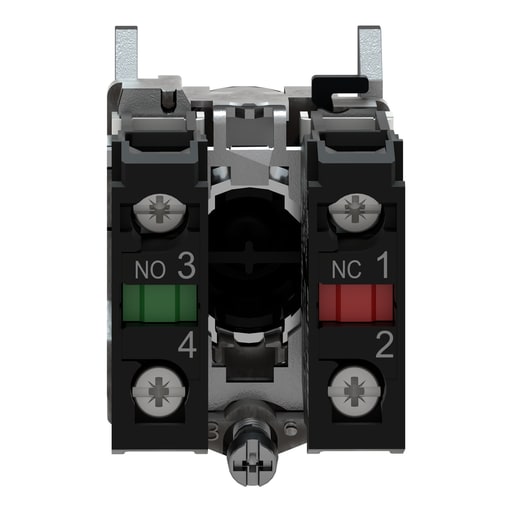

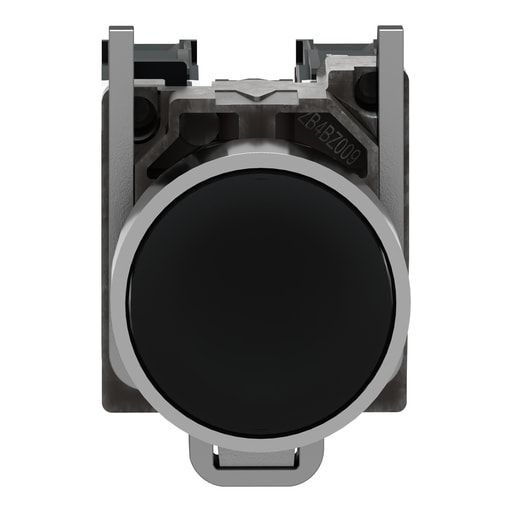

This Harmony XB4 modular push button operates with a spring return / impulse mechanism. It has a chromium-plated metal bezel and is supplied with a black flush cap, unmarked. It features 1 NO + 1 NC slow break contacts and screw-clamp terminals connection type. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. It weighs 80g. Thanks to its simplicity of installation, flexibility, and robustness, it meets the requirements of the majority of industrial applications Prop 65: WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Cross Sell Products: NSYS3D4420; XAPD1201; XB4FA31 - Related Products: ZB4BA2; ZB4BZ009; ZBE101; ZBE102 - Compatible Products: ZBZ32; ZBY2101; ZBYLEG201001; ZBYP2101; ZBPA - Spare Part Products: ZB4BA2; ZBE101; ZBE102; ZB4BZ009
