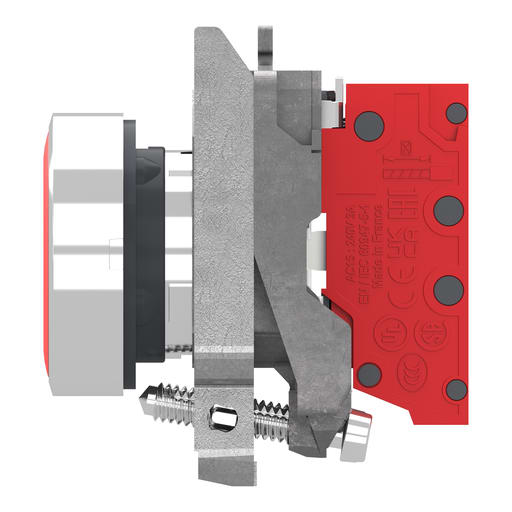

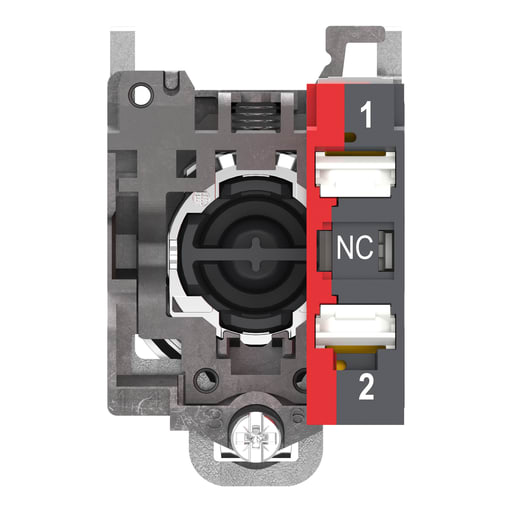

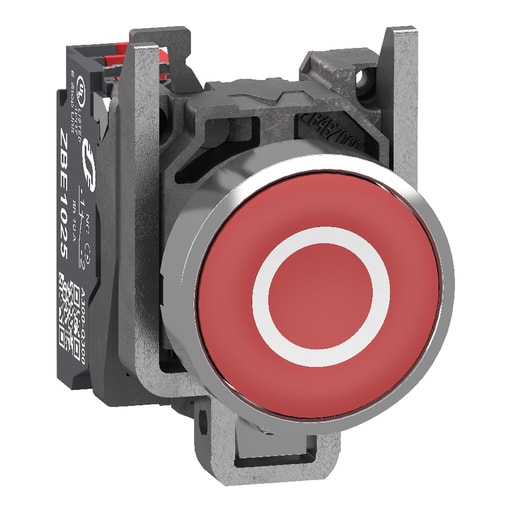

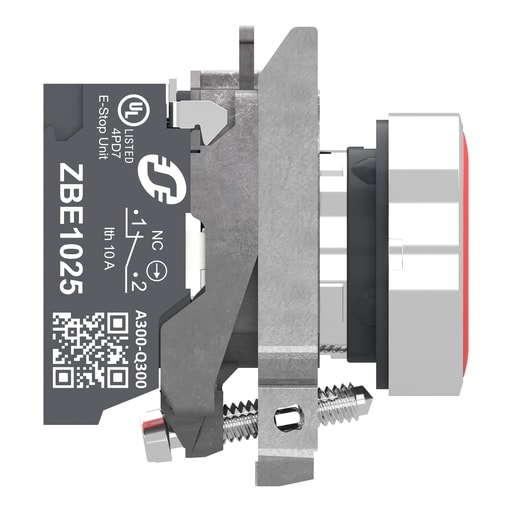

Square-D / Schneider - SQD XB4BA43225 Push button, Harmony
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 606480360735
Actuator - RED FLUSH, O WHITE),SPRING RETURN
Amperage - 3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1
Catalog Number - XB4BA43225
Country of Origin - France
Packaging
1 ea
EAN
03606480360732
Part #
228396
Catalog #
XB4BA43225
Commercial reference
XB4BA43225
12-Digit UPC:
606480360735
Actuator:
RED FLUSH, O WHITE),SPRING RETURN
Amperage:
3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1
Catalog Number:
XB4BA43225
Country of Origin:
France
Depths:
43.2 mm
ERP_productname:
SQD XB4BA43225 RED OPAQUE O PB + NO SPRNG CTC BLK+CLR
Enclosure:
NEMA 13-NEMA 4X
Family Brand Name:
Schneider Electric
Head Type:
Standard
Heights:
47 mm
Size:
22 MM
Sub Brand:
HARMONY XB4
Tc Connection:
SPRING CLAMP TERMINAL, <= 2 X 1.5 MMA. WITH CABLE END EN/IEC 60947-1-SPRING CLAMP TERMINAL, 1 X 0.22...2 X 2.5 MMA. WITHOUT CABLE END EN/IEC 60947-1
Type:
Push-button
Widths:
30 mm
SoneparProductId:
SKU_US_254974727
