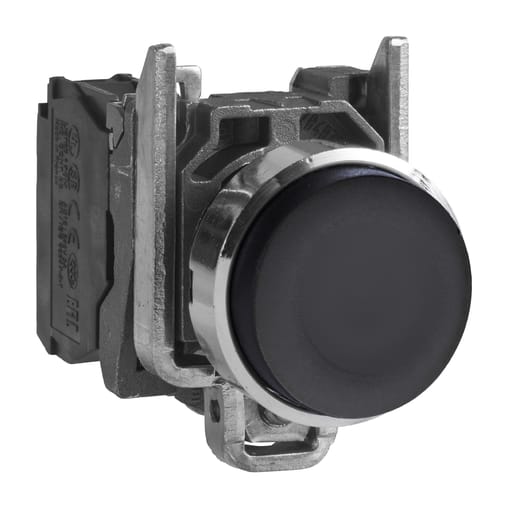

Square-D / Schneider - SQD XB4BL21 Push button, Harmony XB
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 606480507178
Actuator - BLACK PROJECTING, UNMARKED,SPRING RETURN
Amperage - 3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1
Applications - Not compatible with legend holder
Catalog Number - XB4BL21
Packaging
1 ea
EAN
03606480507175
Part #
102244
Catalog #
XB4BL21
Commercial reference
XB4BL21
12-Digit UPC:
606480507178
Actuator:
BLACK PROJECTING, UNMARKED,SPRING RETURN
Amperage:
3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1
Applications:
Not compatible with legend holder
Catalog Number:
XB4BL21
Color:
Black
Country of Origin:
France
Depths:
61 mm
ERP_productname:
SQD XB4BL21 PUSH BUTTON, HARMONY XB4, BLACK PROJECTING COMPLETE PUSHBUTTON 22 MM SPRING RETURN 1 NO "UNMARKED"
Enclosure:
NEMA 13-NEMA 4X
Family Brand Name:
Schneider Electric
Head Type:
Standard
Heights:
47 mm
Size:
2.40 in
Sub Brand:
XB4
Tc Connection:
SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA. WITH CABLE END EN/IEC 60947-1-SCREW CLAMP TERMINALS, 1 X 0.22...2 X 2.5 MMA. WITHOUT CABLE END EN/IEC 60947-1
Type:
Push-button
Widths:
30 mm
SoneparProductId:
SKU_US_192547474
