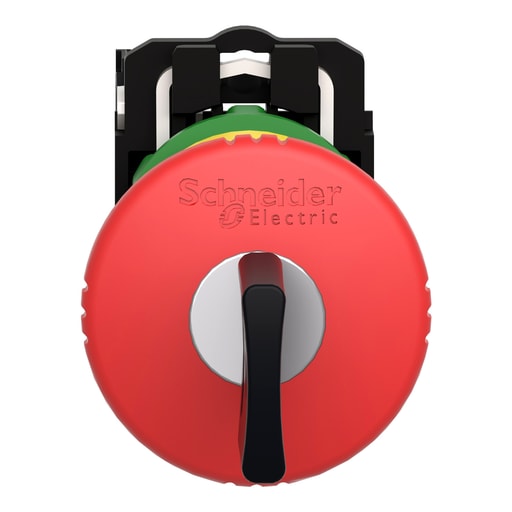

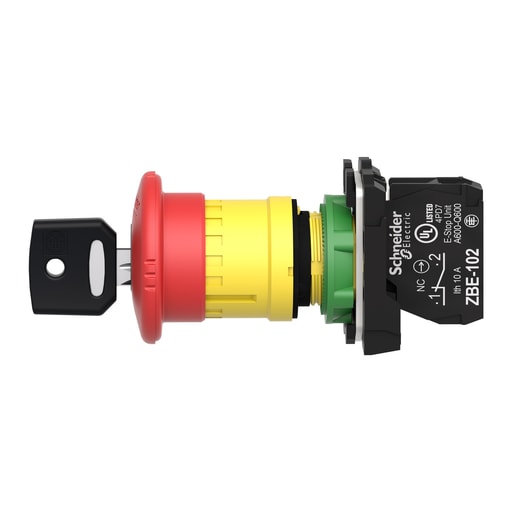

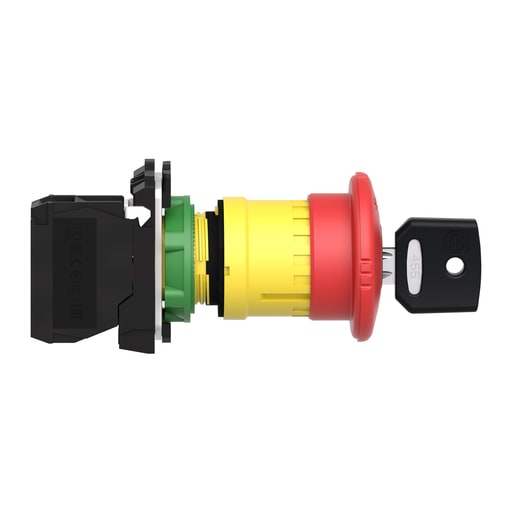

Square-D / Schneider - SQD XB5AS9442 Emergency stop switch
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 606480623670
Actuator - RED MUSHROOM .. 40 MM, UNMARKED,TRIGGER ACTION AND MECHANICAL LATCHING
Amperage - 3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1
Catalog Number - XB5AS9442
Color - Red
Packaging
1 ea
EAN
03606480623677
Part #
222708
Catalog #
XB5AS9442
Commercial reference
XB5AS9442
12-Digit UPC:
606480623670
Actuator:
RED MUSHROOM .. 40 MM, UNMARKED,TRIGGER ACTION AND MECHANICAL LATCHING
Amperage:
3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1
Catalog Number:
XB5AS9442
Color:
Red
Country of Origin:
Czechia
Depths:
100 mm
ERP_productname:
SQD XB5AS9442 KEY RELEASE EMERGENCY STOP WITH RED 40 M
Enclosure:
NEMA 13-NEMA 4X
Family Brand Name:
Schneider Electric
Head Type:
Standard
Heights:
43 mm
Size:
100 MM,22 MM,40 MM,43 MM
Sub Brand:
XB5
Tc Connection:
SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA. WITH CABLE END EN 60947-1-SCREW CLAMP TERMINALS, >= 1 X 0.22 MMA. WITHOUT CABLE END EN 60947-1
Type:
EMERGENCY STOP PUSH-BUTTON-EMERGENCY SWITCHING OFF PUSH-BUTTON
Widths:
40 mm
SoneparProductId:
SKU_US_29797015
