Square-D / Schneider - SQD XB7NA4234 Monolithic push butto

Essential specifications

12-Digit UPC - 785901198383
Actuator - RED FLUSH, STOP WHITE),SPRING RETURN
Amperage - 0.1 Amp 250 V, DC-13, R300 EN/IEC 60947-5-1-0.22 Amp 125 V, DC-13, R300 EN/IEC 60947-5-1-0.3 Amp 240 V, AC-14, D300 EN/IEC 60947-5-1-0.6 Amp 120 V, AC-14, D300 EN/IEC 60947-5-1
Catalog Number - XB7NA4234
Color - Red

Packaging

1 ea

EAN

03606480470158

Part #

188716

Catalog #

XB7NA4234

Commercial reference

XB7NA4234

12-Digit UPC:

785901198383

Actuator:

RED FLUSH, STOP WHITE),SPRING RETURN

Amperage:

0.1 Amp 250 V, DC-13, R300 EN/IEC 60947-5-1-0.22 Amp 125 V, DC-13, R300 EN/IEC 60947-5-1-0.3 Amp 240 V, AC-14, D300 EN/IEC 60947-5-1-0.6 Amp 120 V, AC-14, D300 EN/IEC 60947-5-1

Catalog Number:

XB7NA4234

Color:

Red

Country of Origin:

Indonesia

ERP_productname:

SQD XB7NA4234 MONOLITHIC PUSH BUTTON, PLASTIC, RED, 22, SPRING RETURN, MARKED STOP, 1 NC

Enclosure:

NEMA 12 UL 50 E-NEMA 3 UL 50 E

Family Brand Name:

Schneider Electric

Heights:

29 mm

Mounting Type:

Fixing Hole 22.5 Mm 22.3 +0.4/0 IEC 60947-1

Size:

0.87 in

Sub Brand:

XB7

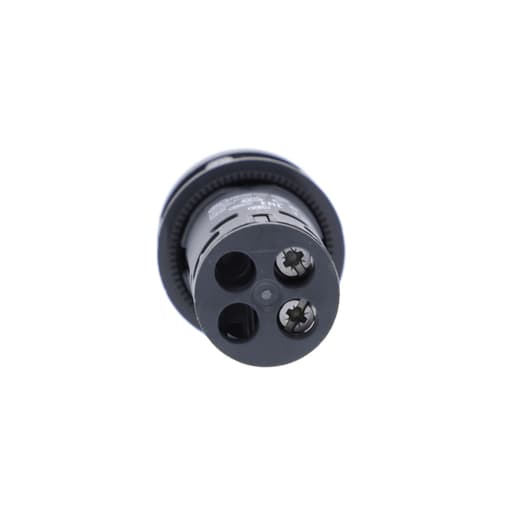

Tc Connection:

SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA. WITH CABLE END EN/IEC 60947-1-SCREW CLAMP TERMINALS, 1 X 0.34...2 X 2.5 MMA. WITHOUT CABLE END EN/IEC 60947-1

Type:

Push-button

Widths:

29 mm

SoneparProductId:

SKU_US_192441509

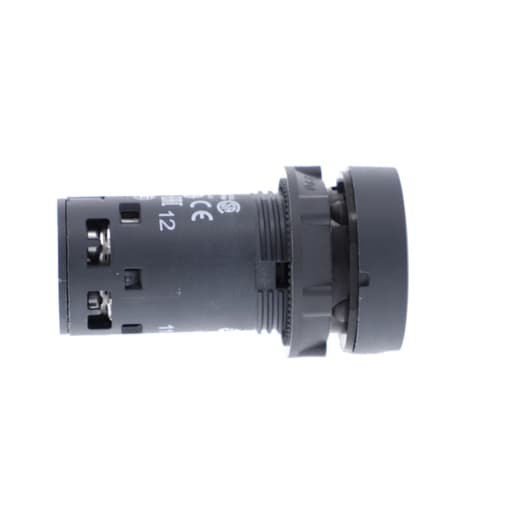

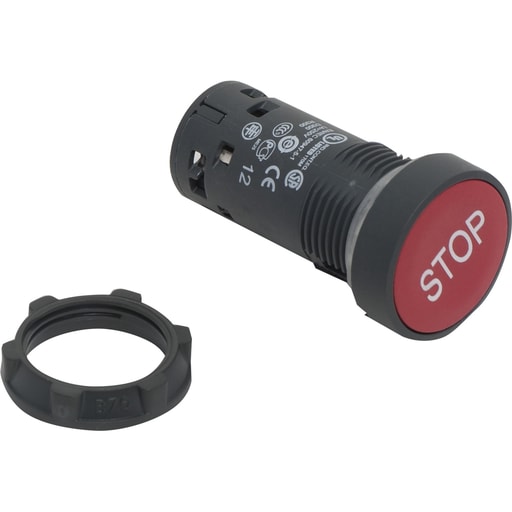

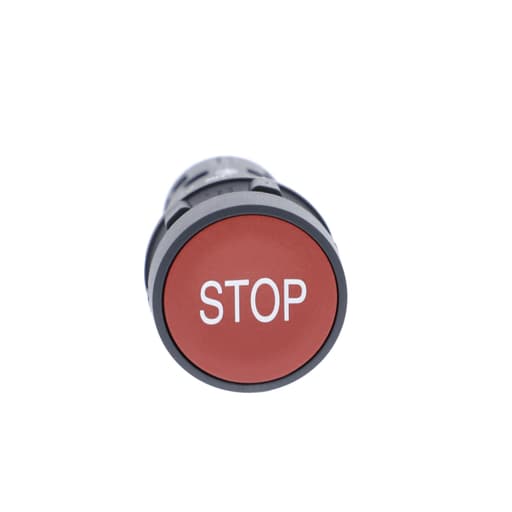

This Harmony XB7, monolithic red push button marked with a "STOP" lettering operates with a spring return / impulse mechanism and screw clamp terminals. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25.C to 70.C allows versatility in usage of product. Prop 65: WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: ZBY2101; ZBY2303; ZB5AZ905; ZBZ32 - Cross Sell Products: XALK84W3BE
