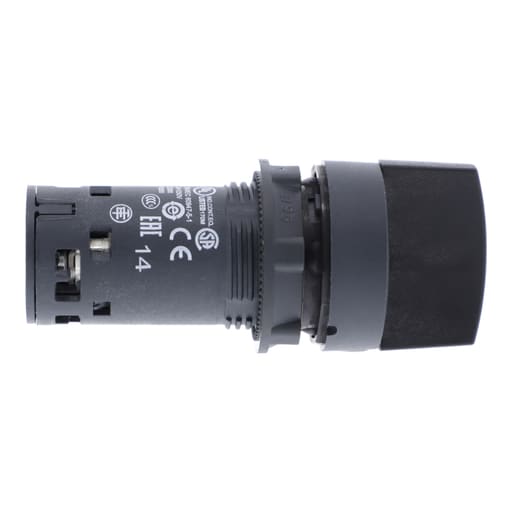

Square-D / Schneider - SQD XB7ND25 Monolithic selector swi

Essential specifications

12-Digit UPC - 606480470250
Actuator - 2 POSITIONS 90A.,BLACK STANDARD HANDLE,STAY PUT
Amperage - 0.1 Amp 250 V, DC-13, R300 EN/IEC 60947-5-1-0.22 Amp 125 V, DC-13, R300 EN/IEC 60947-5-1-0.3 Amp 240 V, AC-14, D300 EN/IEC 60947-5-1-0.6 Amp 120 V, AC-14, D300 EN/IEC 60947-5-1
Catalog Number - XB7ND25
Color - Black

Packaging

1 ea

EAN

03606480470257

Part #

145443

Catalog #

XB7ND25

Commercial reference

XB7ND25

12-Digit UPC:

606480470250

Actuator:

2 POSITIONS 90A.,BLACK STANDARD HANDLE,STAY PUT

Amperage:

0.1 Amp 250 V, DC-13, R300 EN/IEC 60947-5-1-0.22 Amp 125 V, DC-13, R300 EN/IEC 60947-5-1-0.3 Amp 240 V, AC-14, D300 EN/IEC 60947-5-1-0.6 Amp 120 V, AC-14, D300 EN/IEC 60947-5-1

Catalog Number:

XB7ND25

Color:

Black

Country of Origin:

Indonesia

ERP_productname:

SQD XB7ND25 SELECTOR -2POS-1NO+1NC

Enclosure:

NEMA 12 UL 50 E-NEMA 3 UL 50 E

Family Brand Name:

Schneider Electric

Heights:

29 mm

Mounting Type:

Fixing Hole 22.5 Mm 22.3 +0.4/0 IEC 60947-1

Size:

22 MM,29 MM,29 MM,68.5 MM

Sub Brand:

XB7

Tc Connection:

SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA. WITH CABLE END EN/IEC 60947-1-SCREW CLAMP TERMINALS, 1 X 0.34...2 X 2.5 MMA. WITHOUT CABLE END EN/IEC 60947-1

Type:

MONOLITHIC SELECTOR SWITCH

Widths:

29 mm

SoneparProductId:

SKU_US_32151536

This Harmony XB7, monolithic black selector switch has 2 positions, operates with a stay-put mechanism and screw clamp terminals. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides an effective manner to give your machine multiple different inputs. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25.C to 70.C allows versatility in usage of product. Prop 65: WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: ZBY2101; ZBY2303; ZB5AZ905; ZBZ32 - Cross Sell Products: XALK84W3BE
