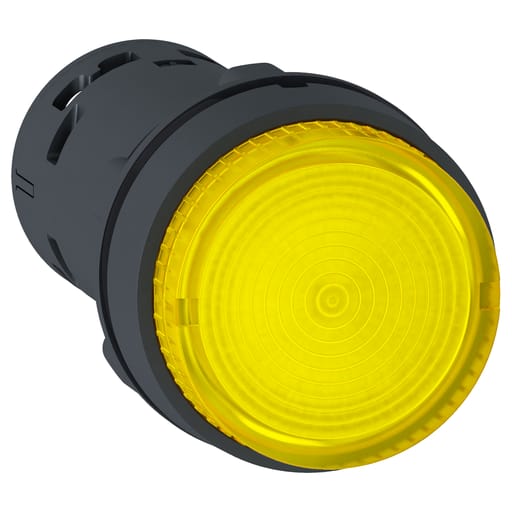

Square-D / Schneider - SQD XB7NW38G1 Monolithic illuminate
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901219088
Actuator - SPRING RETURN,YELLOW PROJECTING, UNMARKED
Amperage - 0.1 Amp 250 V, DC-13, R300 EN/IEC 60947-5-1-0.22 Amp 125 V, DC-13, R300 EN/IEC 60947-5-1-0.3 Amp 240 V, AC-14, D300 EN/IEC 60947-5-1-0.6 Amp 120 V, AC-14, D300 EN/IEC 60947-5-1
Catalog Number - XB7NW38G1
Color - Yellow
Packaging
1 ea
EAN
03606480470998
Part #
201786
Catalog #
XB7NW38G1
Commercial reference
XB7NW38G1
12-Digit UPC:
785901219088
Actuator:
SPRING RETURN,YELLOW PROJECTING, UNMARKED
Amperage:
0.1 Amp 250 V, DC-13, R300 EN/IEC 60947-5-1-0.22 Amp 125 V, DC-13, R300 EN/IEC 60947-5-1-0.3 Amp 240 V, AC-14, D300 EN/IEC 60947-5-1-0.6 Amp 120 V, AC-14, D300 EN/IEC 60947-5-1
Catalog Number:
XB7NW38G1
Color:
Yellow
Country of Origin:
Indonesia
Current:
12-17 mA
ERP_productname:
SQD XB7NW38G1 ILLUM PUSHBUTTON LED SPG RTN 1NO YELLOW 120V
Enclosure:
NEMA 12 UL 50 E
Family Brand Name:
Schneider Electric
Mounting Type:
Fixing Hole 22.5 Mm 22.3 +0.4/0 EN/IEC 60947-1
Size:
0.87 in
Sub Brand:
XB7
Tc Connection:
SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA. WITH CABLE END EN/IEC 60947-1-SCREW CLAMP TERMINALS, 1 X 0.34...2 X 2.5 MMA. WITHOUT CABLE END EN/IEC 60947-1
Type:
Illuminated push-button
Voltage:
120 Volt AC 50/60 HZ
SoneparProductId:
SKU_US_31726049
