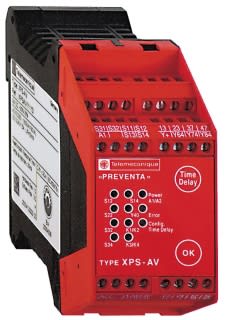

Square-D / Schneider - SQD XPSAV11113 SAFETY RELAY 300V 2.5AMP PREVENTA

12-Digit UPC:

785901470014

Applications:

EMERGENCY STOP BUTTON WITH 2 NC CONTACTS, MONITORED START-EMERGENCY STOP MONITORING 2-CHANNEL WIRING-MONITORING OF A MOVABLE GUARD ASSOCIATED WITH 2 SWITCHES AUTOMATIC START-EMERGENCY STOP BUTTON WITH 1 NC CONTACT, AUTOMATIC START OR UNMONITORED START-EMERGENCY STOP MONITORING 1-CHANNEL WIRING,FOR EMERGENCY STOP AND SWITCH MONITORING

Catalog Number:

XPSAV11113

Country of Origin:

Indonesia

ERP_productname:

SQD XPSAV11113 SAFETY RELAY 300V 2.5AMP PREVENTA

Enclosure:

IP20 CONFORMING TO EN/IEC 60529(TERMINALS), IP40 CONFORMING TO EN/IEC 60529(ENCLOSURE)

Family Brand Name:

Preventa

Sub Brand:

PREVENTA

Tc Connection:

CAPTIVE SCREW CLAMP TERMINALS, 1 X 0.14...1 X 2.5 MMA. FLEXIBLE WITH CABLE END, WITH DOUBLE BEZEL-CAPTIVE SCREW CLAMP TERMINALS, 1 X 0.14...1 X 2.5 MMA. SOLID WITH CABLE END, WITH DOUBLE BEZEL-CAPTIVE SCREW CLAMP TERMINALS, 1 X 0.25...1 X 1.5 MMA. FLEXIBLE WITH CABLE END, WITH DOUBLE BEZEL-CAPTIVE SCREW CLAMP TERMINALS, 1 X 0.25...1 X 2.5 MMA. FLEXIBLE WITH CABLE END, WITH DOUBLE BEZEL-CAPTIVE SCREW CLAMP TERMINALS, 2 X 0.14...2 X 0.75 MMA. FLEXIBLE WITH CABLE END, WITH DOUBLE BEZEL-CAPTIVE SCREW CLAMP TERMINALS, 2 X 0.14...2 X 0.75 MMA. SOLID WITH CABLE END, WITH DOUBLE BEZEL-CAPTIVE SCREW CLAMP TERMINALS, 2 X 0.25...2 X 1 MMA. FLEXIBLE WITH CABLE END, WITH DOUBLE BEZEL-CAPTIVE SCREW CLAMP TERMINALS, 2 X 0.5...2 X 1.5 MMA. FLEXIBLE WITH CABLE END, WITH DOUBLE BEZEL

Type:

PREVENTA SAFETY MODULE

SoneparProductId:

SKU_US_32045279
