Square-D / Schneider - SQD XT130B1FAL2 Telemecanique Capac

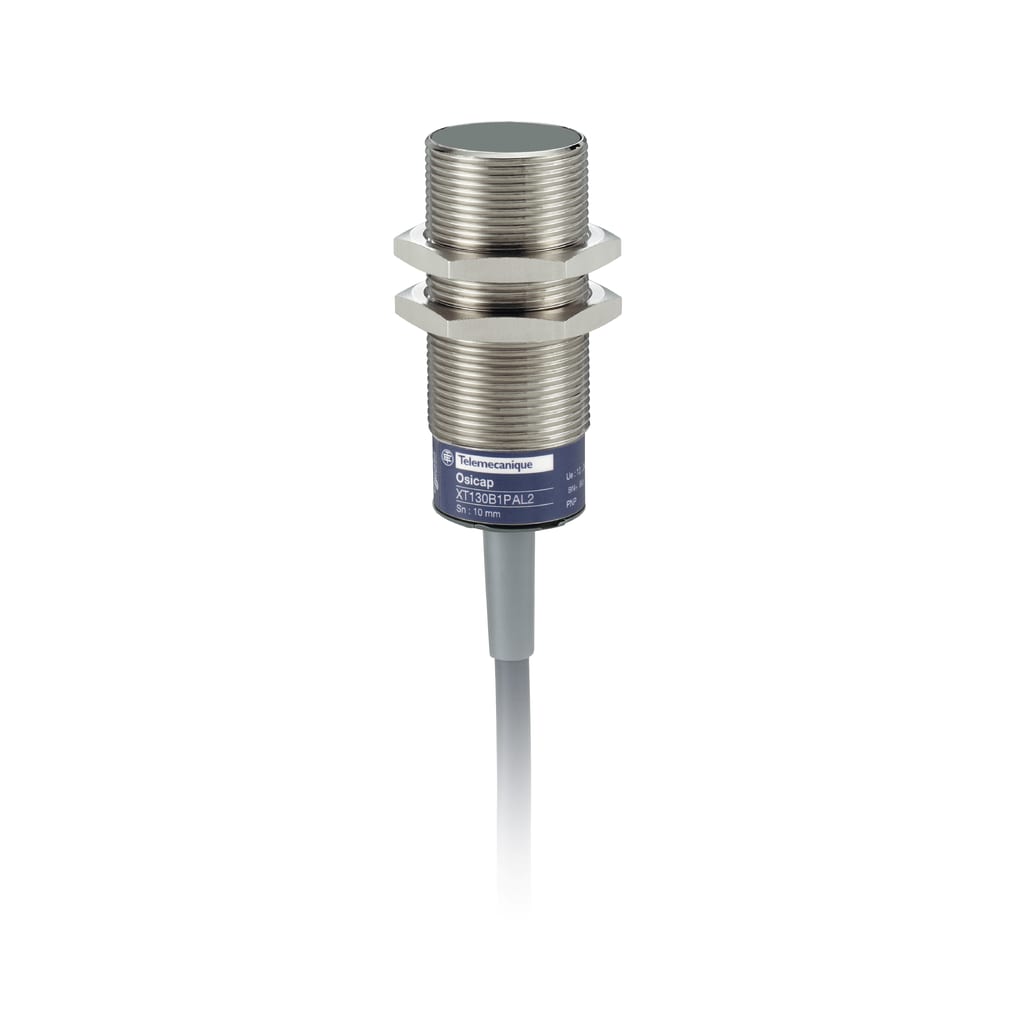

The XT offer is a range of capacitive proximity sensors, dedicated to the detection of insulated or conductive materials. These sensors are suitable for the detection of any object irrespective of material or conductivity. This sensor features a cylindrical nickel plated brass case, diameter 30mm, threaded M30 x 1.5 and a 2m long PVC cable. Advantages of this capacitive proximity sensor, no physical contact with the object to be detected, high operating rates, solid-state product, no moving parts. It is flush mountable with a sensing distance of 10mm. 2-wire, 24V to 240V DC, with NO function. Output state indication by a yellow LED. It is suitable for detection (presence or passage) of paper, cardboard, glass, etc. This sensor complies with CE and cETLus certifications, and with IEC 60947-5-2 and UL 61010-1 standards. A threaded sleeve XTAZ30 and a 90. fixing bracket XXZ30, to be ordered separatly, are available to facilitate the mounting and protection of this sensor.
