Square-D / Schneider - SQD XVC4B35S Monolithic pre wired t

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 606480032496

  • Amperage - 115m Amp

  • Applications - BUZZER

  • Catalog Number - XVC4B35S

  • Country of Origin - USA

Packaging

  • 1 ea

EAN

03606480032493

Part #

355305

Catalog #

XVC4B35S

Commercial reference

XVC4B35S

12-Digit UPC:

606480032496

Amperage:

115m Amp

Applications:

BUZZER

Catalog Number:

XVC4B35S

Country of Origin:

USA

Current:

115 mA

ERP_productname:

SQD XVC4B35S HARMONY XVC, MONOLITHIC PRECABLED TOWER LIGHT, PLASTIC, RED ORANGE GREEN, ?40, TUBE MOUNTING, STEADY OR FLASHING, BUZZER, IP23, 24 V AC/DC

Enclosure:

IP23 VERTICAL SURFACE INSTALLATION EN/IEC 60529-IP54 FLAT SURFACE INSTALLATION EN/IEC 60529

Family Brand Name:

Schneider Electric

Heights:

594.5 mm

Length:

900 mm

Lens Color:

LED STEADY OR FLASHING RED-LED STEADY OR FLASHING ORANGE-LED STEADY OR FLASHING GREEN

Material:

ABS (acrylonitrile Butadiene-styrene): Base Unit,PBT + ABS (UL94HB): Top Cover,Polycarbonate: Illuminated Unit,SGP (chromium-plated): Support Tube

Size:

40 MM

Sub Brand:

XVC,XVC

Type:

3 ILLUMINATED UNITS,COMPLETE PRE-WIRED MONOLITHIC TOWER LIGHT

Voltage:

24 Volt,24 Volt

SoneparProductId:

SKU_US_29459911

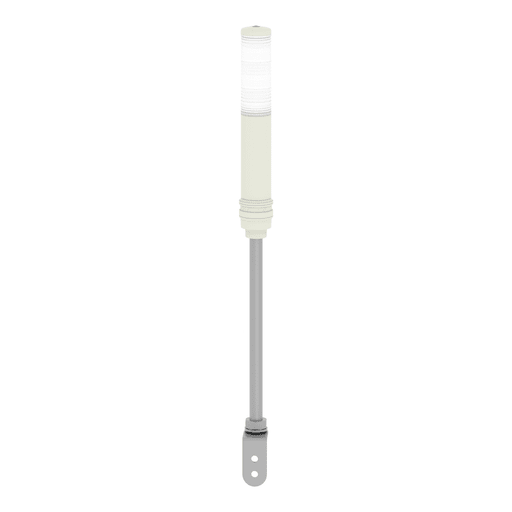

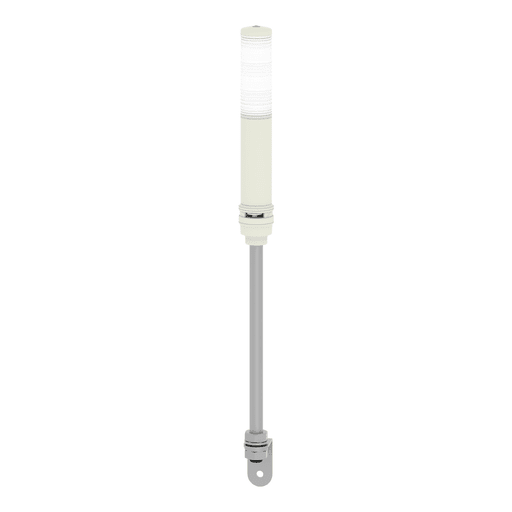

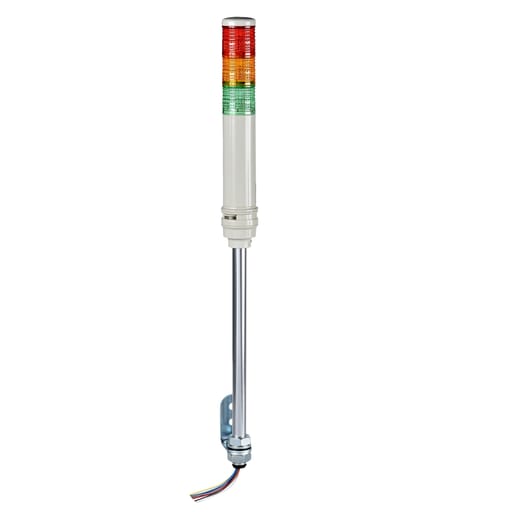

This monolithic tower light is part of the range of pre-assembled and pre-cabled tower lights Harmony type XVC diameter 40mm. It is supplied pre-assembled and pre-cabled with 3 illuminated signaling units (red, orange, green), a buzzer and a base mounted on a support tube with a bracket for mounting on horizontal (IP 54) or vertical surface (IP 23). Supply voltage is 24 V AC/DC. It is designed for long distance indication of the operating states of a machine, either visually by means of illuminated signaling units visible through 360. (super bright LED for steady or flashing light), or audibly by means of a buzzer. It is used mainly in the food-processing and medical sectors. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Cross Sell Products: XVC4B15S; XVC4B25S; XVC4B45S; XVC4B55S
