Square-D / Schneider - SQD XVC6B3 Monolithic precabled tow

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901670780

  • Amperage - 75 MA

  • Applications - WITHOUT

  • Catalog Number - XVC6B3

  • Country of Origin - USA

Packaging

  • 1 ea

EAN

03606480032561

Part #

135330

Catalog #

XVC6B3

Commercial reference

XVC6B3

12-Digit UPC:

785901670780

Amperage:

75 MA

Applications:

WITHOUT

Catalog Number:

XVC6B3

Country of Origin:

USA

Current:

75 mA

ERP_productname:

SQD XVC6B3 60MM TOWER ROG POLE

Enclosure:

IP23 VERTICAL SURFACE INSTALLATION EN/IEC 60529-IP54 FLAT SURFACE INSTALLATION EN/IEC 60529

Family Brand Name:

Schneider Electric

Heights:

508.3 mm

Length:

600 mm

Lens Color:

LED STEADY RED-LED STEADY ORANGE-LED STEADY GREEN

Material:

ABS (acrylonitrile Butadiene-styrene): Base Unit,PBT + ABS (UL94HB): Top Cover,Polycarbonate: Illuminated Unit,STK (chromium-plated): Support Tube

Size:

60 MM

Sub Brand:

XVC

Type:

3 ILLUMINATED UNITS,COMPLETE PRE-WIRED MONOLITHIC TOWER LIGHT

Voltage:

24 Volt

SoneparProductId:

SKU_US_29070446

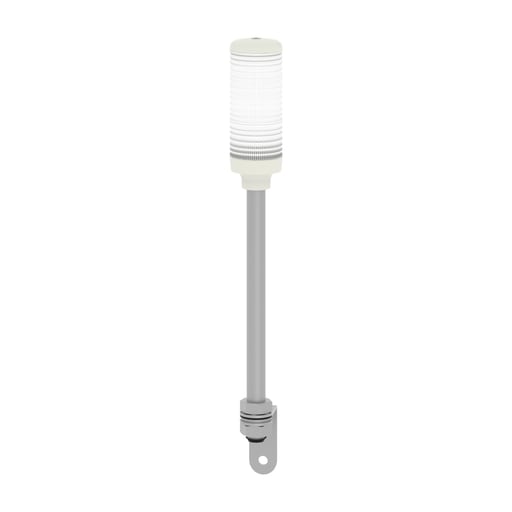

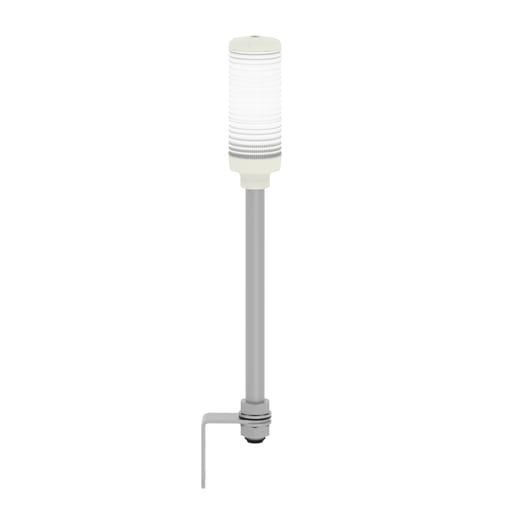

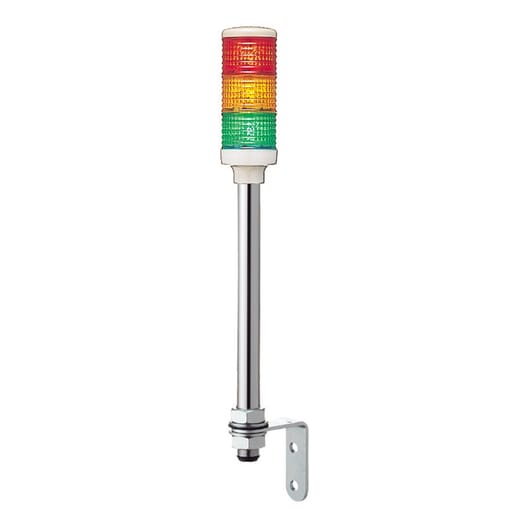

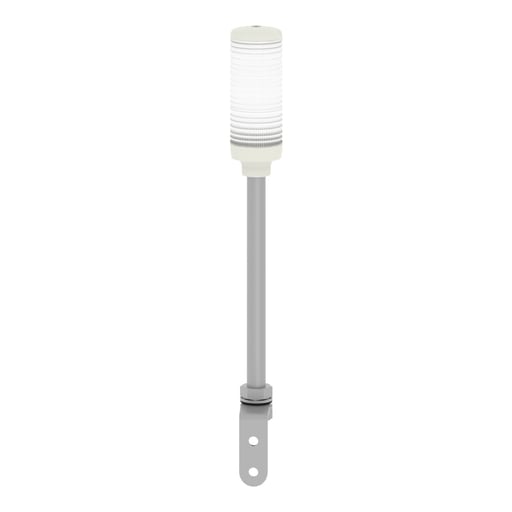

This monolithic tower light is part of the range of pre-assembled and pre-cabled tower lights Harmony type XVC diameter 60mm. It is supplied pre-assembled and pre-cabled with 3 illuminated signaling units (red, orange, green) and a base mounted on a support tube with a bracket for mounting on horizontal (IP 54) or vertical surface (IP 23). Supply voltage is 24 V AC/DC. It is designed for long distance indication of the operating states of a machine, visually by means of illuminated signaling units visible through 360. (super bright LED for steady light only). It is used mainly in the in semi-conductor factories, on conveyor belts and on small food or drink dispensing machines in the commercial sector. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: XVCZ12; XVCZ02 - Cross Sell Products: XVC6B4; XVC6B5
