Square-D / Schneider - SQD XVR12B04S Rotating beacon, Harm

CopyCopy
Square-D / Schneider - SQD XVR12B04S Rotating beacon, Harm

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 606480033233

  • Amperage - 196 MA

  • Applications - BUZZER

  • Catalog Number - XVR12B04S

  • Country of Origin - Indonesia

Packaging

  • 1 ea

EAN

03606480033230

Part #

117759

Catalog #

XVR12B04S

Commercial reference

XVR12B04S

12-Digit UPC:

606480033233

Amperage:

196 MA

Applications:

BUZZER

Catalog Number:

XVR12B04S

Country of Origin:

Indonesia

Current:

196 mA

ERP_productname:

SQD XVR12B04S 120MM ROTATING MIRROR RED 24VAC-DC

Enclosure:

IP23 IEC 60529

Family Brand Name:

Schneider Electric

Length:

400 mm

Lens Color:

HIGH LUMINOSITY LED, RED

Material:

ABS (acrylonitrile Butadiene-styrene): Body Part,AS: Globe

Size:

120 MM,120 MM,120 MM

Sub Brand:

XVR

Type:

PREWIRED ROTATING MIRROR BEACON

Voltage:

19-30 Volt DC-21.6-26.4 Volt AC,24 Volt AC/DC

Widths:

120 mm

SoneparProductId:

SKU_US_31109817

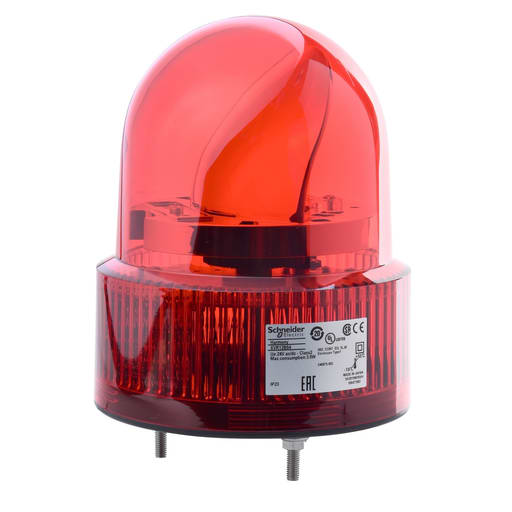

This rotating mirror is part of the range of pre-wired rotating/flashing beacons Harmony XVR. It is supplied complete, pre-cabled with a buzzer integrated (adjustable sound level from 50dB to 90dB at 1 m). It features red super bright LED light source and it can be supplied with 24V AC/DC. It provides good illuminating power and a long service life (reduced time for maintenance) thanks to its super-bright LED. Its protection index is IP23. It weighs 500g, its diameter is 130mm and it is 150mm high. It provides AS globe and ABS (acrylonitrile butadiene-styrene) body part. It is designed for long distance signaling applications, used mainly in the iron and steel industry, on industrial handling vehicles or for safety applications. It is CE, UL and CSA certified. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: XVCZ23 - Cross Sell Products: XALK84W3BE; XARS8D18W; XVS14GMW
