Square-D / Schneider - SQD XVS72BMBP Electronic alarm, Har

CopyCopy
Square-D / Schneider - SQD XVS72BMBP Electronic alarm, Har

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 606480032908

  • Applications - 16 TONES ALARM

  • Catalog Number - XVS72BMBP

  • Color - Black

  • Country of Origin - France

Packaging

  • 1 ea

EAN

03606480032905

Part #

239716

Catalog #

XVS72BMBP

Commercial reference

XVS72BMBP

12-Digit UPC:

606480032908

Applications:

16 TONES ALARM

Catalog Number:

XVS72BMBP

Color:

Black

Country of Origin:

France

Current:

117 mA

Depths:

69.3 mm

ERP_productname:

SQD XVS72BMBP HARMONY XVS, ELECTRONIC ALARM, BLACK, PNP, MOUNTING SUPPORT DIN 72, 0?90 DB, 16 TONES, 4 CHANNELS, 12?24 V DC

Enclosure:

IP 54

Family Brand Name:

Schneider Electric

Heights:

72 mm

Material:

ABS (acrylonitrile Butadiene-styrene): Body,PC (polycarbonate): Terminal Cover

Sub Brand:

XVS,XVS

Tc Connection:

PRE-WIRED

Type:

ELECTRONIC ALARM

Widths:

72 mm

SoneparProductId:

SKU_US_29855966

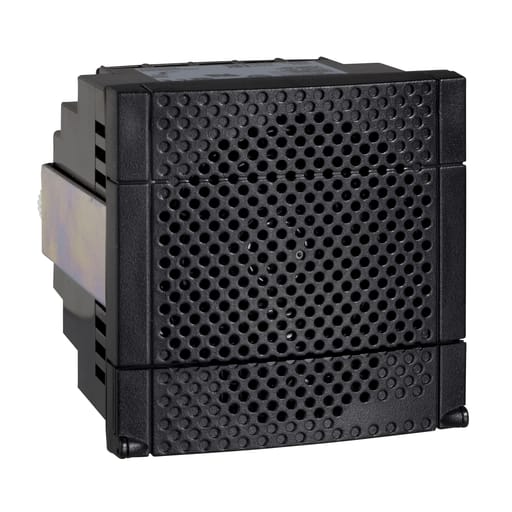

This black electronic alarm is part of the range of multi sound sirens and alarms Harmony XVS. This multisound alarm provides 16 tones and is supplied pre-cabled. It can be supplied with 12V to 24V DC and features PNP output type. It allows imple integration with your applications featuring a compact body that.s 20% thinner than the competition. Its protection index is IP54. It weighs 180g. It provides PC (polycarbonate) terminal cover and ABS (acrylonitrile butadiene-styrene) body part. It is designed for long distance signaling applications, used mainly on conveyor belts, automated industrial trucks and on the doors of electrical control panels. It is CE, UL and CSA certified. It can be mounted on 72mm DIN rail. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Cross Sell Products: XALK84W3BE; XARS8D18W; XVR12B04S
