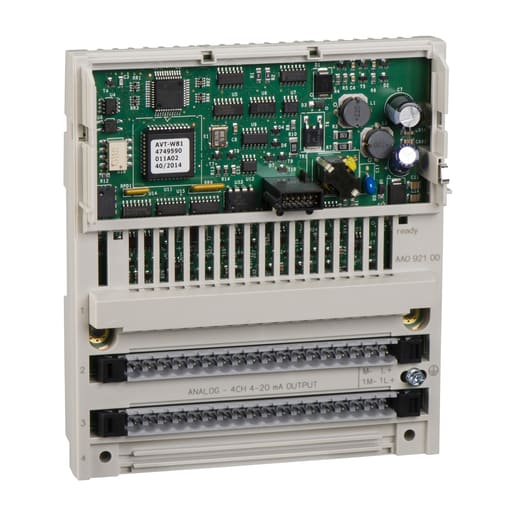

Square-D / Schneider - Square D 170AAO92100 125 x 47.5 x 141.5 mm 24 VDC 4 to 20 mA 4-Channel Analog Output Base

This output base is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This analog output base offers 4 outputs with a full 16bit signed resolution. It offers analog output ranges from .10V, 4mA to 20mA. There is an isolation between channels and ground at 500V AC. It features 4 LEDs for channel status signaling. Its dimensions are 141.5mm (width) x 47.5mm (depth) x 125mm (height). It weighs 0.215kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, CSA and UL. It is suitable for wall mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: 170XTS00100; 170XTS00200
