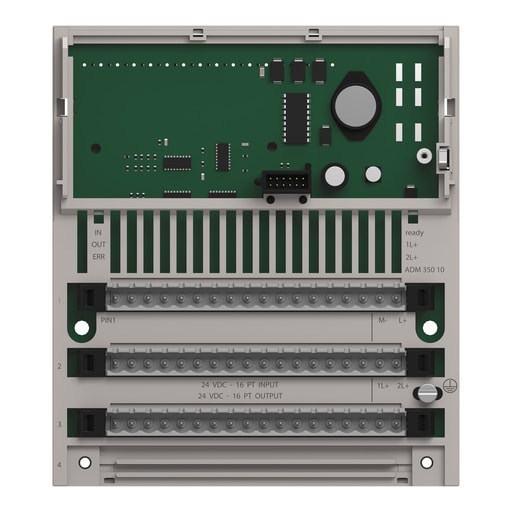

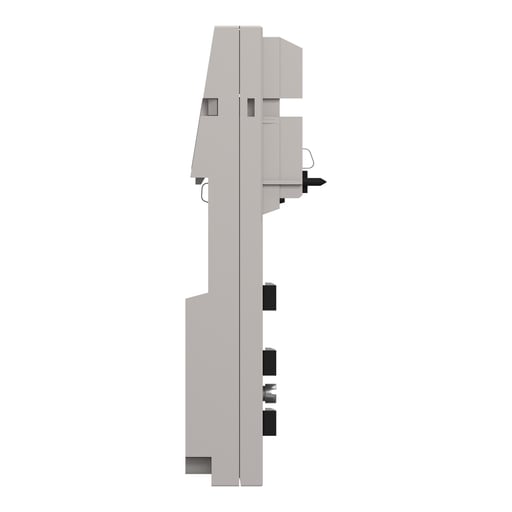

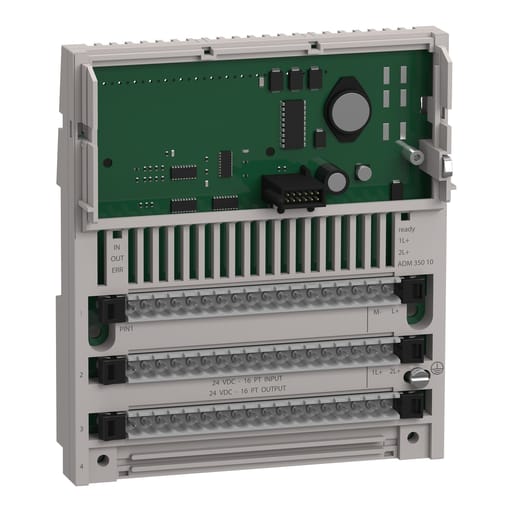

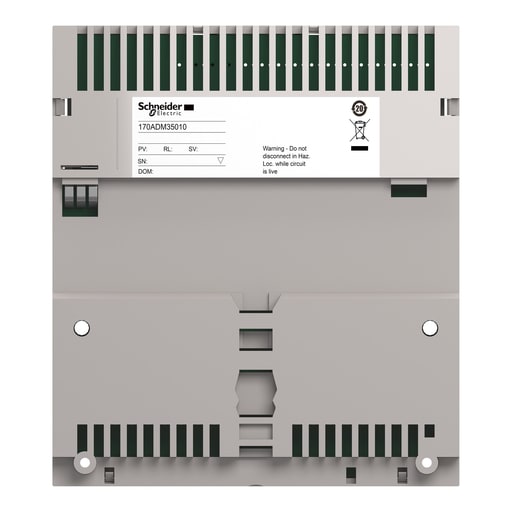

Square-D / Schneider - Square D 170ADM35010 125 x 47.5 x 141.5 mm 24 VDC 250 mA 16-Input 16-Output Discrete I/O Base

This product is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This discrete I/O module has 1 group of 16 inputs and 2 groups of 8 solid state outputs with sink (positive) discrete logic. It is an I/O module with a rated supply voltage of 24V DC, an input/output voltage of 24V DC, a current consumption of 250mA at 24V DC and a power dissipation of 8W. Its dimensions are 125mm (width) x 47.5mm (depth) x 141.5mm (height) and weighs 0.2kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, CSA and UL. Momentum is a flexible, modular family of fundamental components that easily snap together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: 170XTS00100; 170XTS00200
