Square-D / Schneider - Square D 170ANR12090 125 x 47.5 x 141.5 mm 24 VDC 400 mA 6-Input 4-Output Discrete and Analog I/O Base

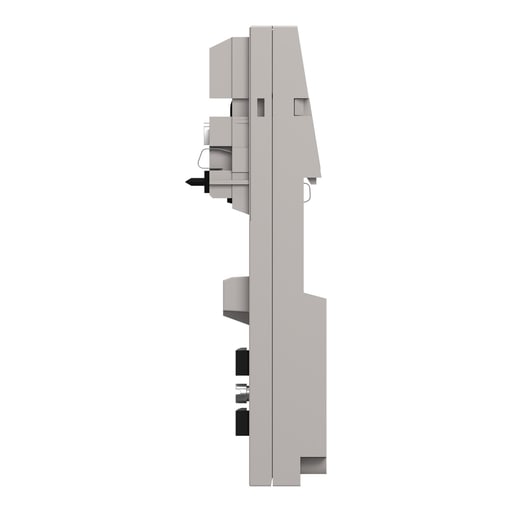

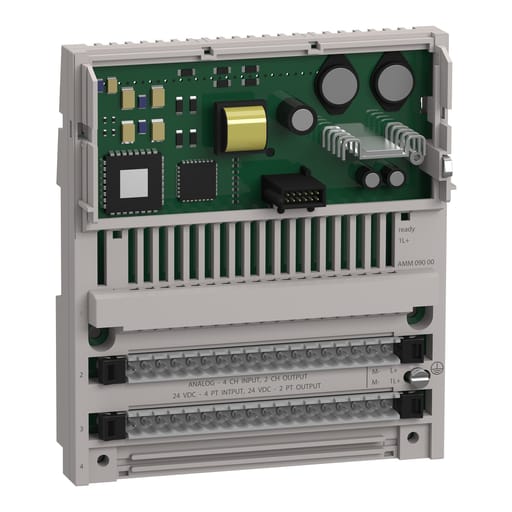

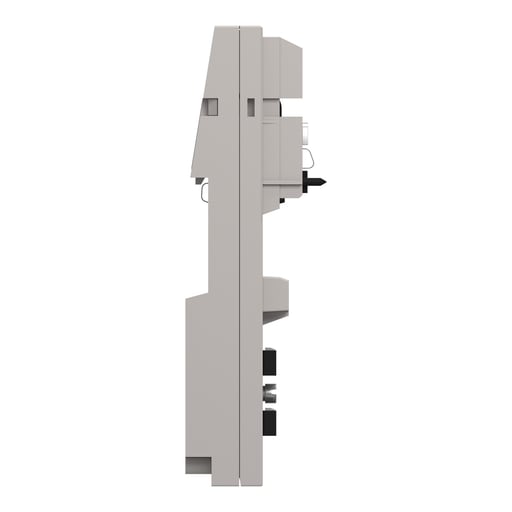

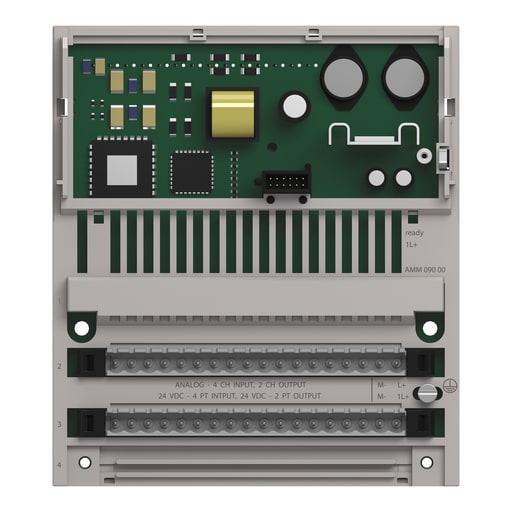

This I/O module is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This distributed analog, discrete I/O base module offers 8 discrete outputs, 8 discrete inputs, 6 analog inputs and 4 analog outputs. It is a module with analog input/output voltage ranges from 0V to 10V and discrete input voltage of 24V DC and discrete output voltage from 10V to 30V. There is an isolation between analog I/O and operating voltage, operating voltage and I/O from the ground at 500V. It is furnished with 2 removable terminal blocks for electrical connection. It features 4 LEDs for channel status signaling. Its dimensions are 141.5mm (width) x 47.5mm (depth) x 125mm (height). It weighs 0.24kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, CSA and UL. It is suitable for wall mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: 170XTS00100; 170XTS00200
