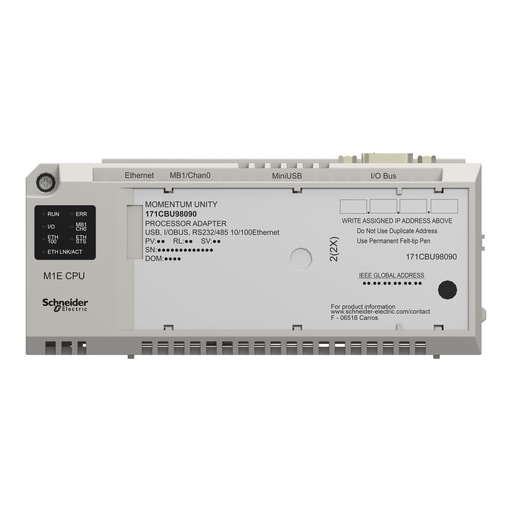

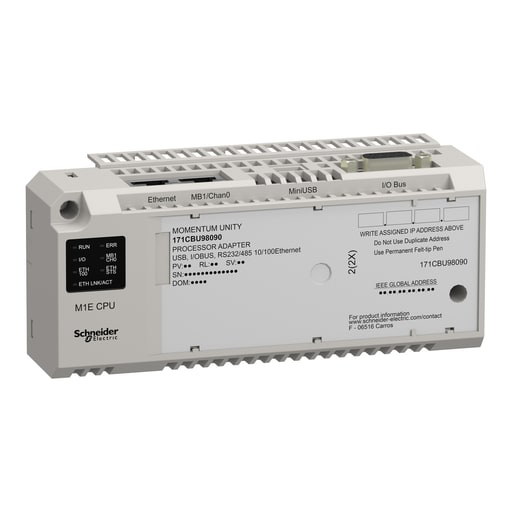

Square-D / Schneider - Square D 171CBU98090 Unity M1E Processor

This product is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This Unity M1E processor is equipped with Ethernet and USB integrated connection ports. The Spear 320s processor's communication services are Modbus messaging 125 words, 200 I/O message per second. The processor with Unity Pro software has web services like CPU status, Ethernet statistics, bandwidth monitoring, home pages and properties. It is an IP20 rated product. Its dimensions are 144mm (width) x 53.47mm (depth) x 60.6mm (height) and weighs 0.163kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM, C-Tick. It meets UL 508, CSA C22.2 No 142 and EN/IEC 61131-2 standards. This product is compatible with Modicon STB I/O. It supports 35mm symmetrical DIN rail mount. Momentum is a flexible, modular family of fundamental components that easily snap together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Cross Sell Products: 171CBU98091
